1
Engine displacement
50
2
Model
ZULU
3
Year
2001
4
Trim
Zulu 50
5
Parts Catalog
Starting shaft
6
Parts Diagram
Parts Catalog
Gear group
by
Clutch unit
Starting shaft
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Washer
ODN00002028770
Not Available
2
screw
ODN00H02900761
Not Available
3
Snap ring
ODN00000047111
Not Available
4
Gasket ring
ODN00D02910131
Not Available
5
Washer
ODN00005529290
Not Available
6
Starting gear
ODN00H02900091
Not Available
7
Spring
ODN00H02900281
Not Available
8
Gear
ODN00H02901441
Not Available
9
Support
ODN00H02901551
Not Available
10
Spring cable lever
ODN00H02900041
Not Available
11
Cup
ODN00H02900271
Not Available
12
Starting shaft
ODN00H02900011
Not Available
13
Kick - start
ODN00H02901251
Not Available
14
Washer
ODN00000047122
Not Available
15
Stop washer
ODN00002029050
Not Available
16
Snap ring
ODN00047030900
Not Available
17
Washer
ODN00000036100
Not Available
18
Ball
ODN00000061040
Not Available
19
Spring
ODN00003127200
Not Available
20
screw
ODN00G03000211
Not Available

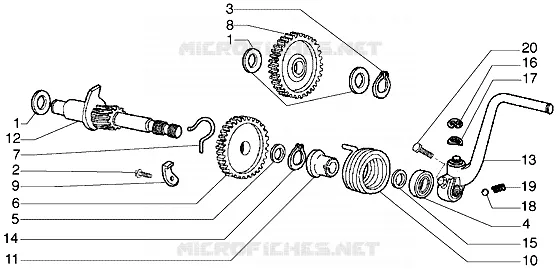

Find the detailed Starting shaft GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
