1
Engine displacement
50
2
Model
ZULU
3
Year
2001
4
Trim
Zulu 50
5
Parts Catalog
Cylinder-piston-wrist pin, assy-Crankshaft
6
Parts Diagram
Parts Catalog
Toolkit
by
Gear group
Cylinder-piston-wrist pin, assy-Crankshaft
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
1
Cylinder-piston, assy.
ODN00H05014121
Not Available
2
Piston-wrist pin assy.
ODN00H02532091
Not Available
2
Piston-wrist pin assy.
ODN00H02512091
Not Available
2
Piston-wrist pin assy.
ODN00H02522091
Not Available
3
Piston-ring
ODN00H02501111
Not Available
4
Wrist pin
ODN00003125120
Not Available
5
Snap ring
ODN00003125130
Not Available
6
Cylinder head
ODN00H02505011
Not Available
7
Cylinder head gasket
ODN00H02501021
Not Available
8
Cylinder gasket
ODN00H02500041
Not Available
9
Drive shaft
ODN00H02506141
Not Available
10
Shaft
ODN00002025190
Not Available
11
Joint
ODN00H02500301
Not Available
12
Bearing
ODN00059220400
Not Available
13
Joint
ODN00E02500231
Not Available
14
Washer
ODN00002225220
Not Available
15
Nut
ODN00008202730
Not Available
16
Con-rod assy.
ODN00H05001011
Not Available
17
Roller cage
ODN00002125170
Not Available
18
Sec. screw
ODN00G03001091
Not Available
19
Fixing washer
ODN00003125280
Not Available
20
Thermal switch
ODN00H02302441
Not Available

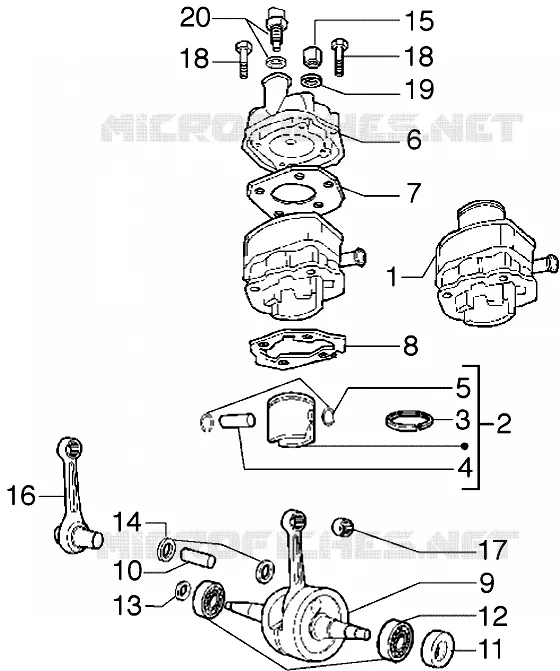

Find the detailed Cylinder-piston-wrist pin, assy-Crankshaft GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
