1
Engine displacement
50
2
Model
ZULU
3
Year
2001
4
Trim
Zulu 50
5
Parts Catalog
Crankcase
6
Parts Diagram
Parts Catalog
Air cleaner
by
Tank-saddle
Crankcase
1
2
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
25
25
26
27
28
29
1
Crankcase assembly
ODN00H03015631
Not Available
2
Crankcase gasket
ODN00H03000031
Not Available
3
Pad
ODN00H03010361
Not Available
4
Crankcase, half
ODN00H03009881
Not Available
5
Crankcase cover gasket
ODN00H03000141
Not Available
6
Case cover
ODN00H03004241
Not Available
7
Oil plug
ODN00A03001422
Not Available
8
Washer
ODN00A03000121
Not Available
9
Pad
ODN00002030020
Not Available
10
Ring nut
ODN00H02504891
Not Available
11
Hose clamp
ODN00H03800451
Not Available
12
screw
ODN00002061011
Not Available
13
Washer
ODN00003102280
Not Available
14
screw
ODN00H03000081
Not Available
15
Ring
ODN00001130370
Not Available
16
Sec. bolt
ODN00003130050
Not Available
17
Joint
ODN00005530600
Not Available
18
Breather pipe
ODN00H03700461
Not Available
19
Screw
ODN00G03900821
Not Available
20
Union pipe
ODN00H02507061
Not Available
21
Reeds bracket
ODN00H02510641
Not Available
22
screw
ODN00G03000211
Not Available
23
Sec. screw
ODN00G03001091
Not Available
24
Sec. screw
ODN00G03002091
Not Available
25
Plain washer d6
ODN00000031060
Not Available
26
screw
ODN00H03000091
Not Available
27
Oil unload plug
ODN00A03000132
Not Available
28
Gasket
ODN00H02500811
Not Available
29
Sec. screw
ODN00F05000061
Not Available

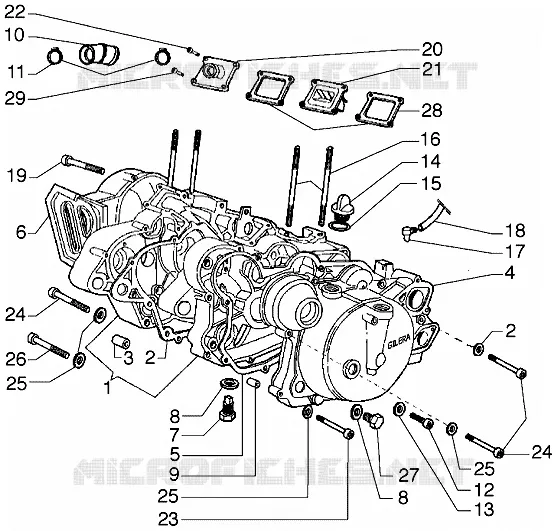

Find the detailed Crankcase GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
