1
Engine displacement
50
2
Model
ZULU
3
Year
2001
4
Trim
Zulu 50
5
Parts Catalog
Carburettor
6
Parts Diagram
Parts Catalog
Flywheel magneto-H.t. coil
by
Silencer
Carburettor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
25
25
26
27
28
29
30
31
32
1
Carburettor
ODN00H03242011
Not Available
2
Slide
ODN00F03201211
Not Available
3
Jet Needle
ODN00G03201431
Not Available
4
Needle valve
ODN00H03204421
Not Available
5
Main jet
ODN00G03216031
Not Available
6
Idle jet
ODN00H04106181
Not Available
7
Starter jet
ODN00H03203481
Not Available
8
Not available
ODN00H03202281
Not Available
9
Sec. screw
ODN00G03200061
Not Available
10
Spring
ODN00G03201071
Not Available
11
Ring nut
ODN00G03200511
Not Available
12
Pin clip
ODN00G03201371
Not Available
13
Cover
ODN00H03202231
Not Available
14
Starter
ODN00H03203711
Not Available
15
Sec. screw
ODN00G03200541
Not Available
16
Starter fixing plate
ODN00G03200551
Not Available
17
Adjusting spring
ODN00G03200721
Not Available
18
Adjusting screw
ODN00G03200731
Not Available
19
Adjusting spring
ODN00G03200101
Not Available
20
Pin
ODN00G04100131
Not Available
21
Knob
ODN00G04100741
Not Available
22
Float needle
ODN00G03201051
Not Available
23
Not available
ODN00H03202281
Not Available
24
Float chamber
ODN00H03201201
Not Available
25
Float chamber gasket
ODN00G04100771
Not Available
26
Sec. screw
ODN00G03201091
Not Available
27
Heater kit
ODN00H06000151
Not Available
28
Throttle transmission
ODN00H00918171
Not Available
29
Fuel pipe
ODN00F00403321
Not Available
30
Spring clamp
ODN00D03700131
Not Available
31
Vacuum hose piping
ODN00H06201061
Not Available
32
Spring clamp
ODN00F03710131
Not Available

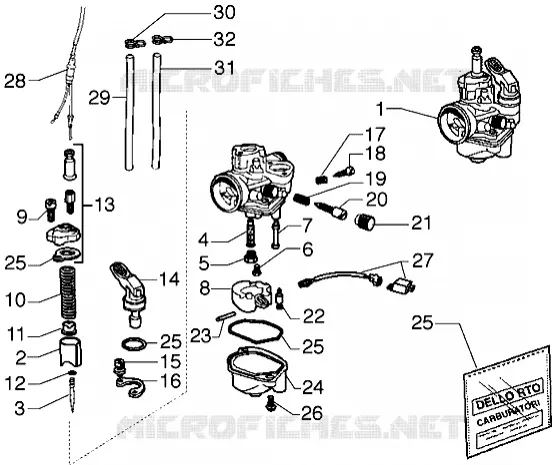

Find the detailed Carburettor GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
