1
Engine displacement
300
2
Model
GTS
3
Year
2020
4
Trim
GTS 300 HPE 4T/4V ie ABS Euro 4
5
Parts Catalog
FLYWHEEL COVER - OIL FILTER
6
Parts Diagram
Parts Catalog
Fork/steering tube - Steering bearing unit
by
Reduction unit

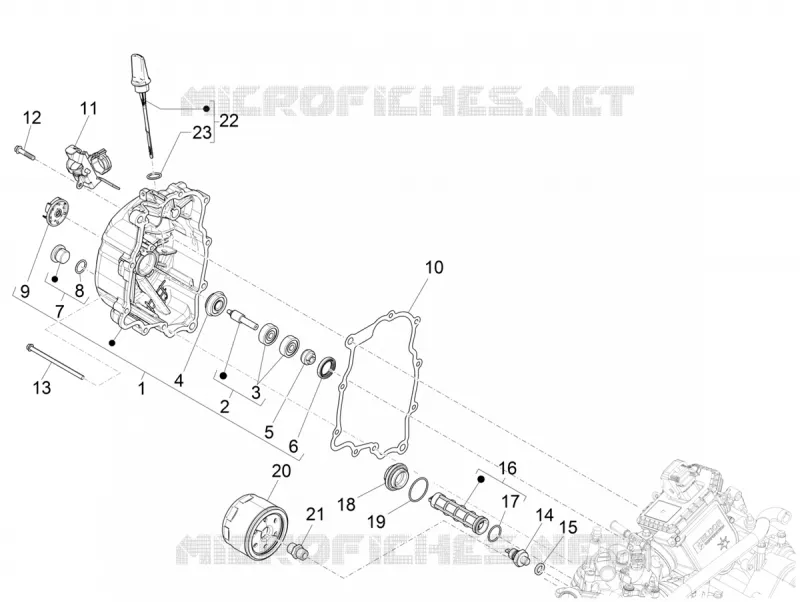

FLYWHEEL COVER - OIL FILTER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
Couvercle volant électromagnétique
1A0128565
£196,18 Unit Price incl. VAT
2
Water pump shaft assy.
8447595
£57,52 Unit Price incl. VAT
3
Bearing 28x8x9
82755R
£14,66 Unit Price incl. VAT
4
Gasket ring
82991R
£27,28 Unit Price incl. VAT
5
Pump impeller drive key
842389
£31,21 Unit Price incl. VAT
6
Gasket ring 20x30x5
82897R
£12,89 Unit Price incl. VAT
7
Timing plug assembly
8290405
£16,91 Unit Price incl. VAT
8
O-ring
479986
Not Available
9
Water pump impeller cpl.
844730
£12,84 Unit Price incl. VAT
10
Flywheel housing cover gasket
840504
£10,57 Unit Price incl. VAT
11
Cable support bracket
1A0078285
£16,01 Unit Price incl. VAT
12
screw M6x35
414838
£1,27 Unit Price incl. VAT
13
screw M6x112,5
B016807
£1,90 Unit Price incl. VAT
14
Minimum oil pressure sensor
1D001138
Not Available
15
Rondelle 10,5X17X1,5
1A011500
£2,18 Unit Price incl. VAT
16
Intake oil filter
843568
£5,87 Unit Price incl. VAT
17
O-ring 20,35x1,78
288474
£0,52 Unit Price incl. VAT
18
Oil filter plug
826165
£22,13 Unit Price incl. VAT
19
O-ring 31,47x1,78
285536
£1,64 Unit Price incl. VAT
20
Oil filter
82635R
Not Available
21
Oil filter special screw
840507
£10,91 Unit Price incl. VAT
22
Oil dipstick
879081
£10,44 Unit Price incl. VAT
23
O-ring
479986
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
