Engine displacement
300
2
Model
GTS
3
Year
2020
4
Trim
GTS 300 HPE 4T/4V ie ABS Euro 4
5
Parts Catalog
Reduction unit
6

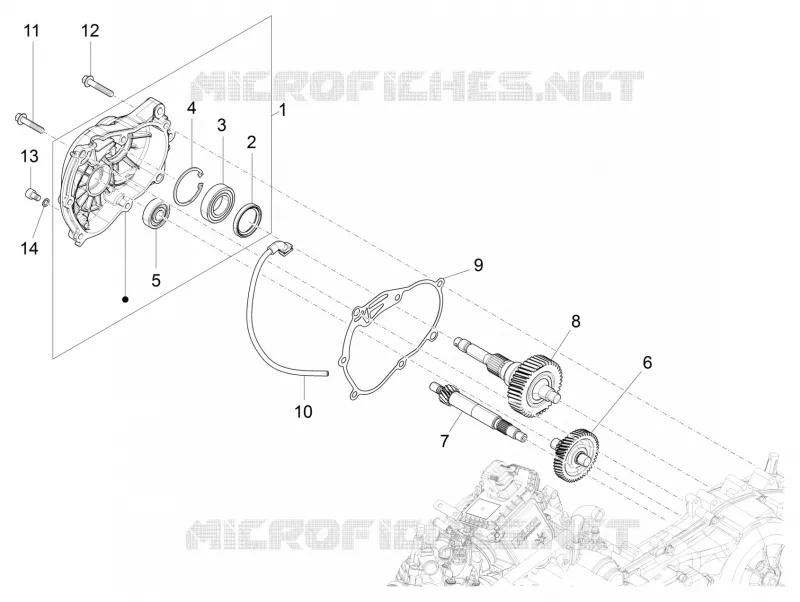

Parts Diagram
Parts Catalog
FLYWHEEL COVER - OIL FILTER
by
Cdi magneto assy
Reduction unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Side cover
8481875
Not Available
2
Gasket ring 38x50x7
83082R
£6,54 Unit Price incl. VAT
3
Bearing 30.55.13
1A005376R
£13,13 Unit Price incl. VAT
4
Circlip
829206
£1,36 Unit Price incl. VAT
5
Radial ball bearing 15x42x13
83018R
£10,26 Unit Price incl. VAT
6
Transmission shaft Z=21/50
8410015
Not Available
7
Driven pulley shaft Z=14
8738755
£224,71 Unit Price incl. VAT
8
Axe roue ar.
1A0116235
Not Available
9
Gasket
847931
£7,80 Unit Price incl. VAT
10
Reduction unit breather pipe assembly
CM162202
£19,60 Unit Price incl. VAT
11
Screw w/ flange M8x40
B016806
£1,24 Unit Price incl. VAT
12
Screw w/ flange M8x45
B016805
£1,27 Unit Price incl. VAT
13
Hex socket screw M8x12
269755
£1,36 Unit Price incl. VAT
14
Washer 8.2x12x1
485703
£0,96 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for GTS 300 HPE 4T/4V ie ABS Euro 4
