1
Engine displacement
300
2
Model
GTS
3
Year
2020
4
Trim
GTS 300 HPE 4T/4V ie ABS Euro 4
5
Parts Catalog
CENTRAL COVER - FOOTRESTS
6
Parts Diagram
Parts Catalog
Front shield
by
CASING

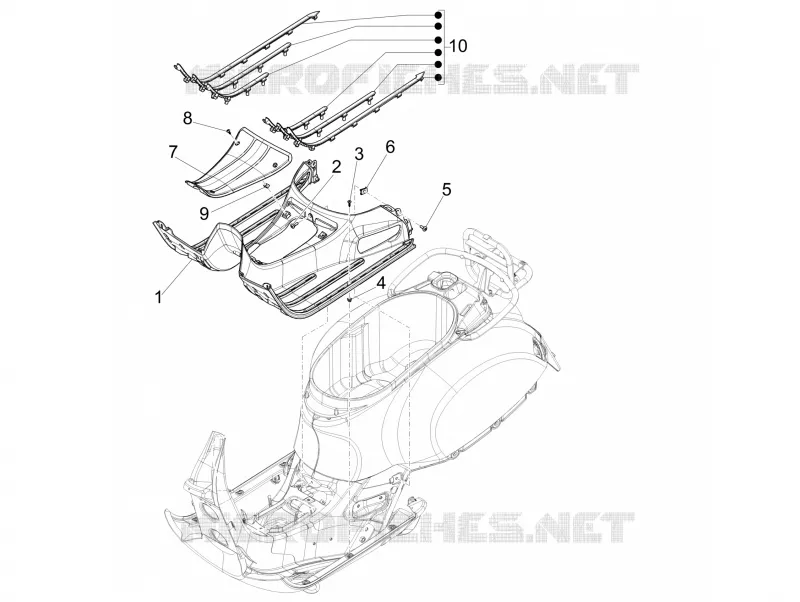

CENTRAL COVER - FOOTRESTS
1
2
3
4
5
6
7
8
9
10
1
Footrest
656637
Not Available
1
Repose-pieds peint
65663700DK
Not Available
1
Repose-pieds peint
65663700VK
Not Available
1
Footrest
65663700YR5
Not Available
1
Footrest
65663700BR
Not Available
1
Footrest
65663700HA
Not Available
1
Repose-pieds peint
65663700VY
Not Available
2
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
3
Self-tap screw
CM178604
£1,24 Unit Price incl. VAT
4
Expansion plug
157716
£0,16 Unit Price incl. VAT
5
Metric screw TBC
CM179302
£1,27 Unit Price incl. VAT
6
Spring plate M6
254485
£1,64 Unit Price incl. VAT
7
Couvercle batterie
1B005737
£52,45 Unit Price incl. VAT
7
Battery cover
1B001014
£54,68 Unit Price incl. VAT
8
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
9
Spring plate
CM017410
£0,71 Unit Price incl. VAT
10
Kit strips, footboard
656648
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
