1
Engine displacement
300
2
Model
GTS
3
Year
2020
4
Trim
GTS 300 HPE 4T/4V ie ABS Euro 4
5
Parts Catalog
HEADLIGHT - INDICATORS
6
Parts Diagram
Parts Catalog
Wheel huosing - Mudguard
by
Driven pulley

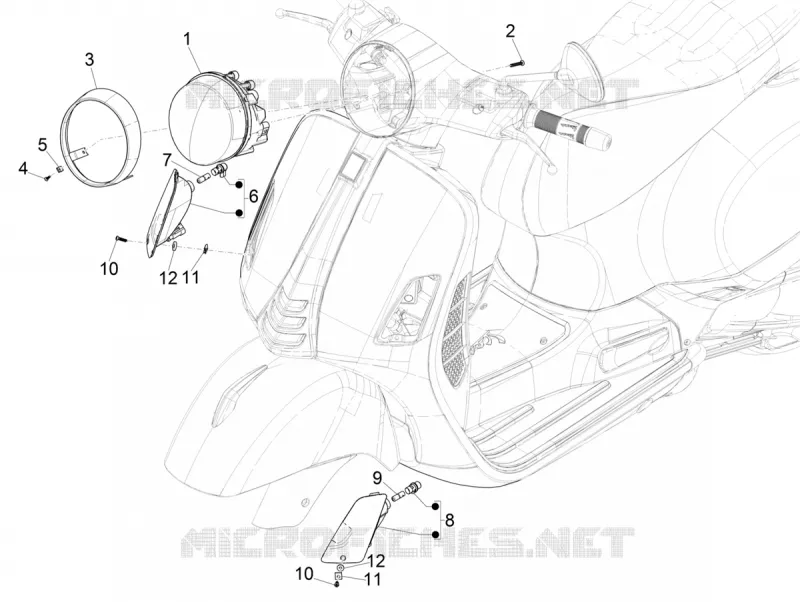

HEADLIGHT - INDICATORS
1
2
3
4
5
6
7
8
9
10
10
11
11
12
12
1
Projecteur avant complet
1D002559
Not Available
1
Projecteur compl.
1D003004
£325,61 Unit Price incl. VAT
2
Self tapping screw L=35 mm
296458
£0,52 Unit Price incl. VAT
3
Encadrement de projecteur
1B005763
£27,80 Unit Price incl. VAT
4
Self-tap screw 3,5x13
018536
Not Available
5
Spring plate
CM017403
£0,90 Unit Price incl. VAT
6
RH front turn indicator
638715
£41,80 Unit Price incl. VAT
7
Lamp 12V-10W
584332
£3,77 Unit Price incl. VAT
8
LH front turn indicator
638716
£41,80 Unit Price incl. VAT
9
Lamp 12V-10W
584332
£3,77 Unit Price incl. VAT
10
Screw d3,5x13
008372
Not Available
11
Spring plate
CM017405
£0,72 Unit Price incl. VAT
12
Rondelle plate
1B006623
£1,45 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
