1
Engine displacement
150
2
Model
PRIMAVERA
3
Year
2020
4
Trim
Primavera 150 Euro 5 ABS
5
Parts Catalog
Crankcase
6
Parts Diagram
Parts Catalog
Rear luggage rack
by
EXHAUST
Crankcase
1
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
1
Carter complet 2e cat.
CM31720402
£1 346,76 Unit Price incl. VAT
1
Carter complet 1e cat.
CM31720401
£1 346,76 Unit Price incl. VAT
2
Nozzle
B018059
£7,39 Unit Price incl. VAT
3
Pin d.9,5 h=15
B015956
£0,74 Unit Price incl. VAT
4
O-ring
273754
£0,73 Unit Price incl. VAT
5
Calibrated nozzle
880706
£9,28 Unit Price incl. VAT
6
Locating dowel
B015957
£1,00 Unit Price incl. VAT
7
Radial bearing 20x50x14
83027R
£11,15 Unit Price incl. VAT
8
Radial bearing 15x42x13
83026R
£5,51 Unit Price incl. VAT
9
Stud bolt
1A001406
£4,26 Unit Price incl. VAT
10
Silent-block
486081
£9,73 Unit Price incl. VAT
11
Gasket
431065
£0,90 Unit Price incl. VAT
12
Circlip 25x26,9x1,2
B015959
£1,27 Unit Price incl. VAT
13
Sealing ring 22x35x7
1A005834
£5,96 Unit Price incl. VAT
14
Ring container lamination
876646
£4,98 Unit Price incl. VAT
15
Hex socket screw M6x14
1A003108
£2,90 Unit Price incl. VAT
16
Oil pressure adjusting valve
B015432
Not Available
17
Screw w/ flange M6x60
B016425
£1,62 Unit Price incl. VAT
18
Gasket
875111
£16,03 Unit Price incl. VAT
19
Screw w/ flange M5x16
830061
£2,48 Unit Price incl. VAT
20
Oil bulhead
B014134
£9,64 Unit Price incl. VAT
21
Upper oil bulkhead
B014135
£7,10 Unit Price incl. VAT
22
Valve spring
B015431
£1,24 Unit Price incl. VAT
23
Filter door insert
B015430
£6,30 Unit Price incl. VAT

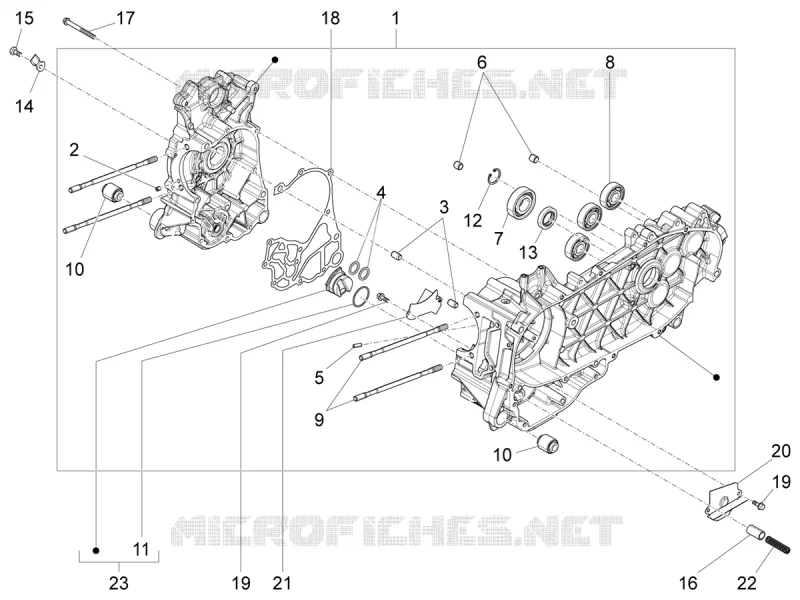

Find the detailed Crankcase GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
