1
Engine displacement
150
2
Model
PRIMAVERA
3
Year
2020
4
Trim
Primavera 150 Euro 5 ABS
5
Parts Catalog
LOCKS
6
Parts Diagram
Parts Catalog
REAR BRAKE - SHOES
by
CYLINDER HEAD - VALVES
LOCKS
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
1
Lock kit
1B004022
Not Available
2
Hewn key with transponder
1B004020
£82,57 Unit Price incl. VAT
3
Gasket ring
298731
£1,00 Unit Price incl. VAT
4
Lock body
1B001876
£15,82 Unit Price incl. VAT
5
Immobilizer antenna
638534
Not Available
6
Complete lock block
1B006291
£32,41 Unit Price incl. VAT
7
Flat washer
298594
£1,24 Unit Price incl. VAT
8
Cylinder retainer spring
298838
£1,69 Unit Price incl. VAT
9
Spring
253937
£2,00 Unit Price incl. VAT
10
Key switch
1D001338
£17,27 Unit Price incl. VAT
12
Spring
CM013201
£0,76 Unit Price incl. VAT
13
Actuator support bracket
674399
£6,38 Unit Price incl. VAT
14
Screw w/ flange M6x16
B016777
£1,27 Unit Price incl. VAT
15
Spring plate M6
254485
£1,64 Unit Price incl. VAT
16
Valve solénoïde
1D002276R
£69,92 Unit Price incl. VAT
17
Hexagonal-head screw
584121
£10,69 Unit Price incl. VAT
18
Self locking nut
577620
£0,97 Unit Price incl. VAT
19
Joint
577128
£3,71 Unit Price incl. VAT
20
Saddle tightening spring actuator
1B003298
£0,97 Unit Price incl. VAT
21
Actuator-lever saddle transmission
CM012851
£8,56 Unit Price incl. VAT
22
Support serrure selle
1B004682
£4,32 Unit Price incl. VAT
23
Saddle lock
CM023701
£34,99 Unit Price incl. VAT
24
screw
CM179202
£1,27 Unit Price incl. VAT
25
Hose clamp
668762
£2,36 Unit Price incl. VAT
26
Saddle cable
CM012852
£11,17 Unit Price incl. VAT
27
Bike finder
1D002038
£136,04 Unit Price incl. VAT
28
Self-tapping screw M5x12
015585
Not Available
29
Spring plate M5
248419
£2,00 Unit Price incl. VAT
30
Wiring clip
1D001143
£1,24 Unit Price incl. VAT

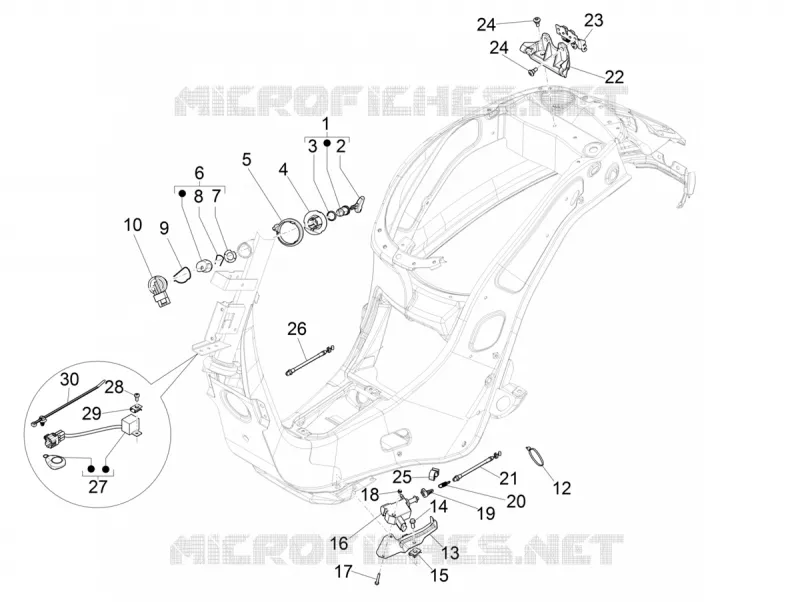

Find the detailed LOCKS GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
