1
Engine displacement
150
2
Model
PRIMAVERA
3
Year
2020
4
Trim
Primavera 150 Euro 5 ABS
5
Parts Catalog

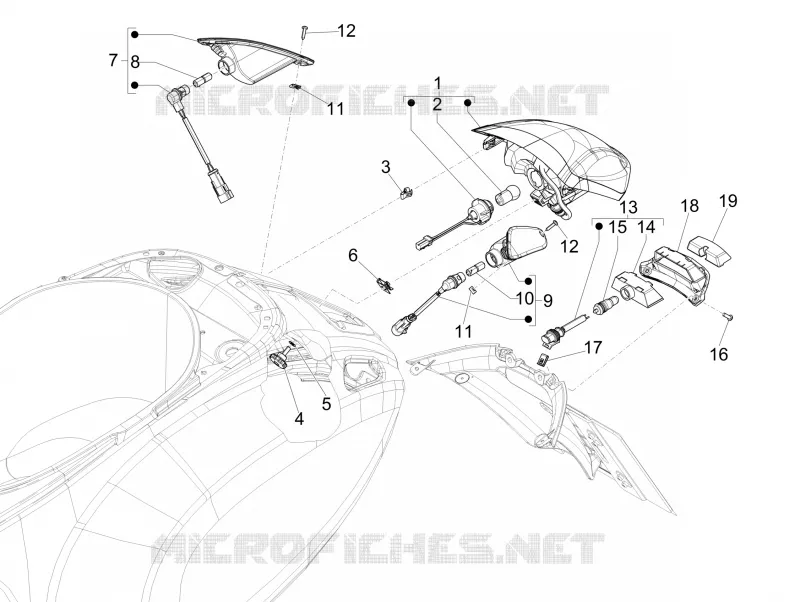

TAIL LIGHTS - INDICATORS
6
Parts Diagram
Parts Catalog
Reduction unit
by
Fork/steering tube - Steering bearing unit
TAIL LIGHTS - INDICATORS
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
17
18
19
1
Taillight
1D002118
£140,11 Unit Price incl. VAT
2
Lamp 12V-10W
181746
£2,92 Unit Price incl. VAT
3
Gripper clip
D9004468091
£4,58 Unit Price incl. VAT
4
Knob
1B000116
£14,56 Unit Price incl. VAT
5
Washer Ø5,3xØ10x0,5
006975
Not Available
6
Spring plate M5
248419
£2,00 Unit Price incl. VAT
7
Clignotant arrière D
1D002788
£68,83 Unit Price incl. VAT
8
Halogen Lamp 12V-6W
1D000261
£16,91 Unit Price incl. VAT
9
Clignotant arrière G
1D002787
£68,83 Unit Price incl. VAT
10
Halogen Lamp 12V-6W
1D000261
£16,91 Unit Price incl. VAT
11
Spring plate
CM017405
£0,72 Unit Price incl. VAT
12
Screw d3,5x13
008372
Not Available
13
Complete license plate light
1D000085
£17,08 Unit Price incl. VAT
14
License plate light glass
1D000314
£7,00 Unit Price incl. VAT
15
12V-5W bulb
2920225
£2,70 Unit Price incl. VAT
16
Self tapping screw
297498
£0,60 Unit Price incl. VAT
17
Spring plate
CM017405
£0,72 Unit Price incl. VAT
18
License plate light cover
673610000C
£4,92 Unit Price incl. VAT
19
Int.Cornice
1B001016
£7,33 Unit Price incl. VAT

Find the detailed TAIL LIGHTS - INDICATORS GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
