Engine displacement
350
2
Model
X10
3
Year
2013
4
Trim
X10 4T 4V I.E. E3
5
Parts Catalog
Crankcase cover - Crankcase cooling
6

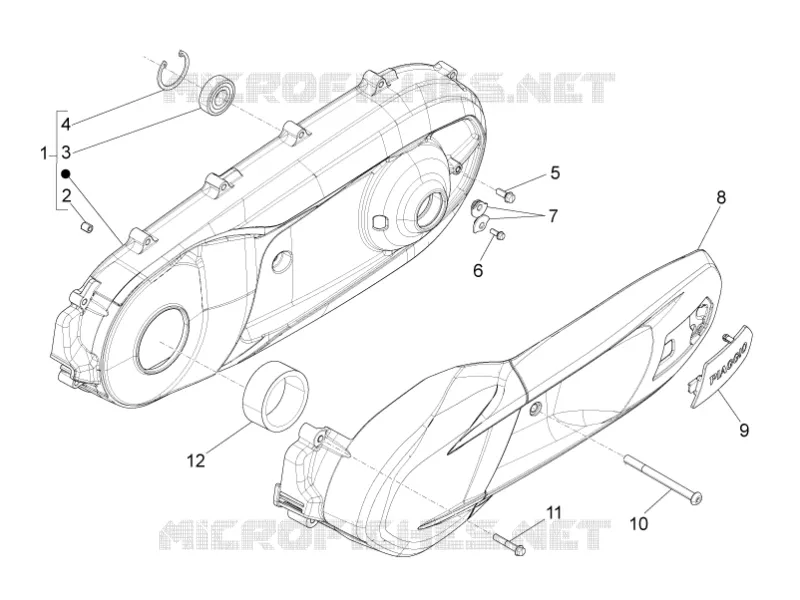

Parts Diagram
Parts Catalog
Swinging arm
by
Front glove-box - Knee-guard panel
Crankcase cover - Crankcase cooling
1
2
3
4
5
6
7
8
9
10
11
12
1
Complete transmission cover
B0159005
£142,34 Unit Price incl. VAT
2
Locating dowel Ø7,5x12
277916
£6,38 Unit Price incl. VAT
3
Radial bearing
840277
£9,43 Unit Price incl. VAT
4
Circlip
825667
£0,86 Unit Price incl. VAT
5
Screw w/ flange M6x30
B016792
£1,27 Unit Price incl. VAT
5
Screw w/ flange M6x30
289731
Not Available
6
Screw w/ flange M6x16
434541
Not Available
7
Retainer buffer
871458
£1,72 Unit Price incl. VAT
8
Cover engine assy, insulator
B014520
Not Available
9
Cover with logo
B014085
Not Available
10
Hex socket screw
B014475
£9,42 Unit Price incl. VAT
11
screw M6x35
414838
£1,27 Unit Price incl. VAT
12
Filtering element
880148
£5,32 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
