Engine displacement
500
2
Model
X9
3
Year
2007
4
Trim
X9 Evolution ABS
5
Parts Catalog

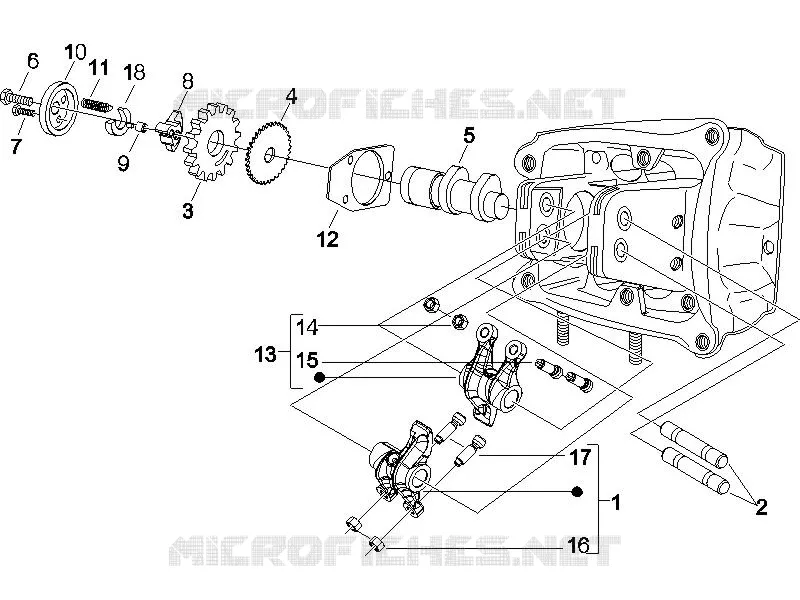

Rocking levers support unit
6
Parts Diagram
Parts Catalog
Head unit - Valve
by
Cylinder head cover
Rocking levers support unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Rocker arm exhaust
826028
Not Available
2
Rocker shaft
827991
£12,52 Unit Price incl. VAT
3
Timing system gear
829198
Not Available
4
Phonic wheel
829211
£21,18 Unit Price incl. VAT
5
Camshaft
845411
Not Available
6
Hex socket screw M5x30
018538
Not Available
7
Screw m8x1x45
829287
Not Available
8
Counterweight
829071
£12,86 Unit Price incl. VAT
9
Gasket
829097
£1,28 Unit Price incl. VAT
10
Decompression bell
829247
£17,60 Unit Price incl. VAT
11
Spring
829252
£0,90 Unit Price incl. VAT
12
Plate
831167
£4,88 Unit Price incl. VAT
13
Rocker arm inlet
826027
Not Available
14
Nut
484819
£1,33 Unit Price incl. VAT
15
Adjuster screw
82817R
Not Available
16
Nut
484819
£1,33 Unit Price incl. VAT
17
Adjuster screw
82817R
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
