Engine displacement
500
2
Model
X9
3
Year
2007
4
Trim
X9 Evolution ABS
5
Parts Catalog
Front glove-box - Knee-guard panel
6
Parts Diagram
Parts Catalog
Windshield - Glass
by
Helmet huosing - Undersaddle
Front glove-box - Knee-guard panel
1
2
3
3
3
3
4
4
4
5
7
8
9
10
11
12
15
16
17
18
19
20
21
22
22
23
23
24
25
26
27
28
1
Top box
577752000P
£158,06 Unit Price incl. VAT
2
Screw M6x16
272836
£1,13 Unit Price incl. VAT
3
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
4
Spring plate
CM017410
£0,71 Unit Price incl. VAT
5
Spring plate M6
254485
£1,64 Unit Price incl. VAT
7
Gasket
CM006304
Not Available
8
Counter flap
576816
£44,20 Unit Price incl. VAT
9
Top case container
575849
£24,65 Unit Price incl. VAT
10
Bag holder hook
575819
£14,98 Unit Price incl. VAT
11
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
12
Pawl
575607
£3,14 Unit Price incl. VAT
15
Square
252420
£3,88 Unit Price incl. VAT
16
Door fixing bracket
257614
£1,72 Unit Price incl. VAT
17
Lever
575609
Not Available
18
LH plate
575844
Not Available
19
RH plate
575845
£12,65 Unit Price incl. VAT
20
Spring
575608
Not Available
21
Spring
575610
Not Available
22
Door spring
575846
£9,98 Unit Price incl. VAT
23
Self tapping screw
297498
£0,60 Unit Price incl. VAT
24
Self tapping screw
296141
£1,39 Unit Price incl. VAT
25
Spring plate
CM017410
£0,71 Unit Price incl. VAT
26
Pin
270147
Not Available
27
Pin
575062
£3,35 Unit Price incl. VAT
28
RIVEST.PER VAS
577801
Not Available

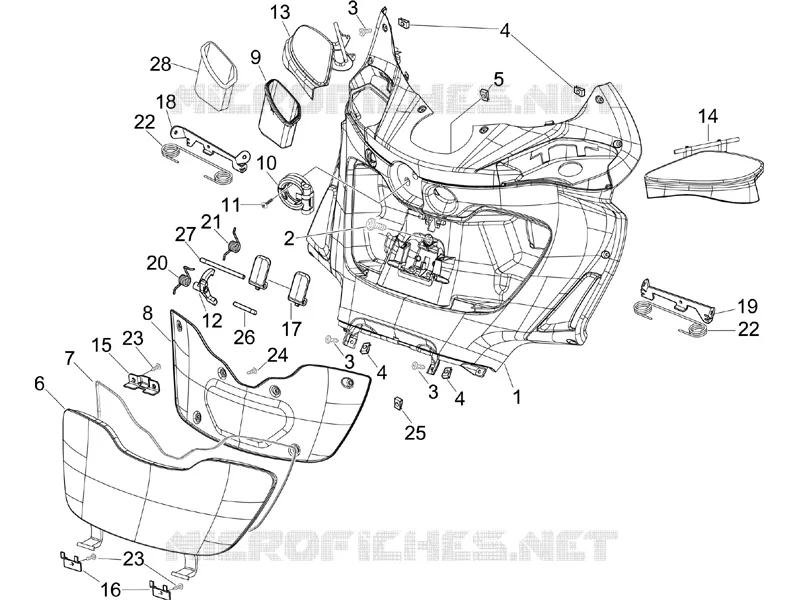

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
