Parts Catalog
Supply system
6
Parts Diagram
Parts Catalog
Fuel tank
by
Cooling system
Supply system
1
2
3
4
6
7
8
9
10
1
Oil delivery pipe
621617
Not Available
2
Return pipe
621616
Not Available
3
PUMP, FUEL FOR X-9
639043
Not Available
4
FUEL PUMP FILTER
639332
Not Available
6
Fuel pipe
CM011901
Not Available
7
Washer
012528
Not Available
8
TBCIC Screw M5x12
015935
Not Available
9
Hose clamp
273779
£1,99 Unit Price incl. VAT
10
Fuel recovery tank
575873
Not Available

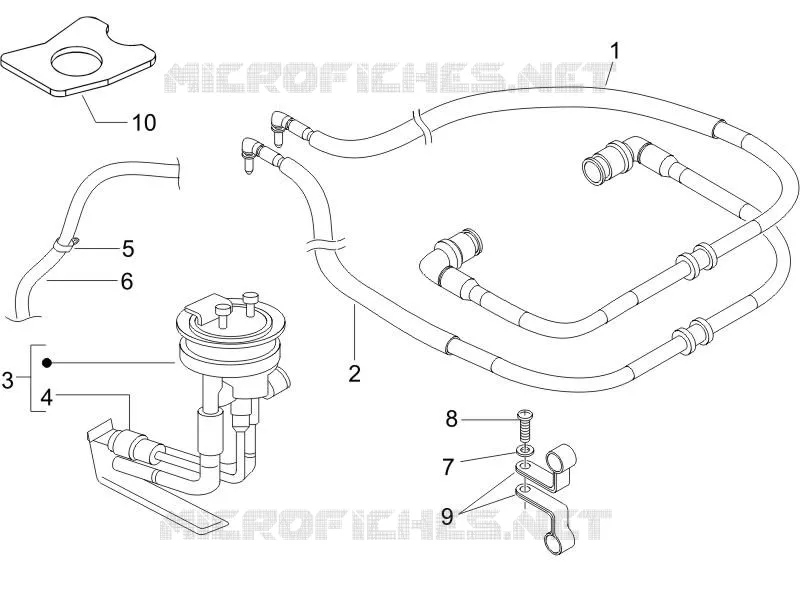

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
