1
Engine displacement
500
2
Model
X9
3
Year
2007
4
Trim
X9 Evolution ABS
5
Parts Catalog
Stater - Electric starter
6
Parts Diagram
Parts Catalog
Oil pump
by
Frame/bodywork
Stater - Electric starter
1
2
5
7
11
12
13
14
15
1
Starter motor
82699R
£336,88 Unit Price incl. VAT
2
Starter motor gear
82737R
£74,82 Unit Price incl. VAT
5
Ring container lamination
828109
£9,18 Unit Price incl. VAT
7
Torque limiter
832117
Not Available
8
Ground cable
581424
Not Available
11
Starter cable
582650
Not Available
12
Screw w/ flange
847645
£1,38 Unit Price incl. VAT
13
TBCIC Screw M5x12
015935
Not Available
14
screw
581596
£1,06 Unit Price incl. VAT
15
Spring washer 8,5x5,1x1,5
016405
Not Available

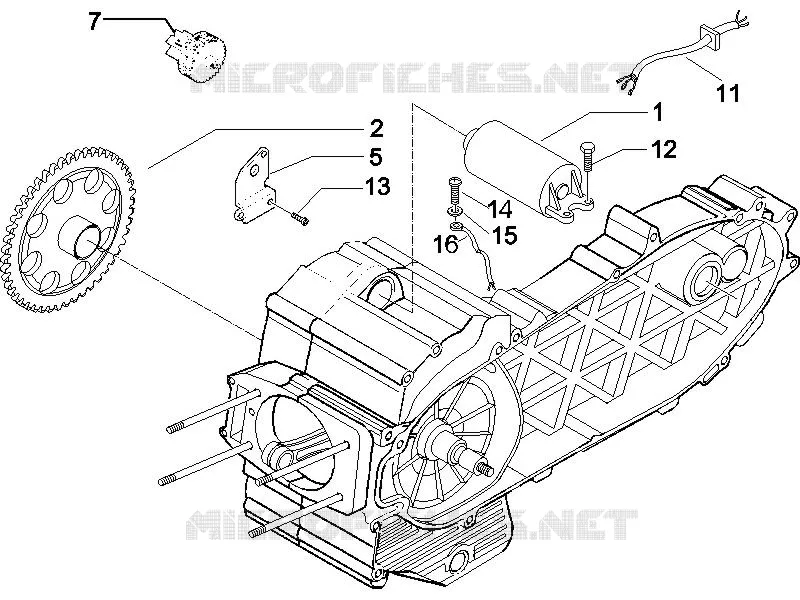

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
