Parts Catalog
Brakes pipes - Calipers
6

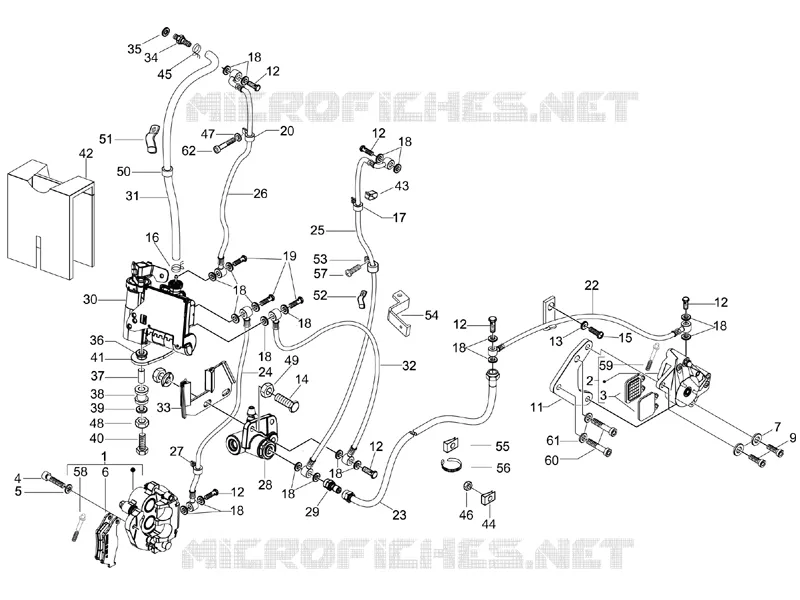

Parts Diagram
Parts Catalog
Rear suspension - Shock absorber/s
by
Selectors - Switches - Buttons
Brakes pipes - Calipers
1
2
3
4
5
6
7
9
11
12
12
12
12
12
12
13
14
15
16
17
18
18
18
18
18
18
18
18
18
18
19
20
22
23
24
25
26
27
28
29
30
31
32
33
34
35
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
1
Brake caliper
CM072504
Not Available
2
Brake caliper
CM067906
Not Available
3
Brake pads kit (Brembo)
647077
£42,94 Unit Price incl. VAT
4
screw M8x30
015792
Not Available
5
Spring washer
709047
£0,70 Unit Price incl. VAT
6
BRAKE PADS X9 ABS
647160
Not Available
7
Spring washer
709047
£0,70 Unit Price incl. VAT
9
screw
598919
£0,58 Unit Price incl. VAT
11
Caliper support bracket
598060
Not Available
11
Caliper support bracket
649418
Not Available
12
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
13
Spring washer 6,4x11x0,5
006966
Not Available
14
Hex socket screw M6x20
709674
£1,27 Unit Price incl. VAT
15
screw M6x35
414838
£1,27 Unit Price incl. VAT
16
Hose clamp
CM002903
£0,24 Unit Price incl. VAT
17
Hose clamp
597395
Not Available
18
Gasket
127927
£1,04 Unit Price incl. VAT
19
Screw
600256
£4,25 Unit Price incl. VAT
20
Fairlead
274350
Not Available
22
Rear brake stiff pipe
600876
£28,24 Unit Price incl. VAT
23
BREAK PIPES
599545
£46,57 Unit Price incl. VAT
24
BREAK PIPES
600341
Not Available
25
Brake pipe (valve-pump)
564784
Not Available
26
BREAK PIPES
600342
Not Available
27
Hose clamp
482290
Not Available
28
Valve
599696
Not Available
29
Joint
597033
£27,38 Unit Price incl. VAT
30
Device
599682
Not Available
31
Oil pipe
599920
Not Available
32
BREAK PIPES
600400
Not Available
33
Bracket
600754
Not Available
34
Joint
600164
Not Available
35
Washer
600165
£2,81 Unit Price incl. VAT
37
Spacer
600276
Not Available
38
Spacer
834040
£5,10 Unit Price incl. VAT
39
Spring washer
709047
£0,70 Unit Price incl. VAT
40
Hex screw M8x22
031119
Not Available
41
Bracket
842744
Not Available
42
Soundproofing material
601109
Not Available
43
Non return spring l=27
CM006904
£2,32 Unit Price incl. VAT
44
Spring
179013
£5,17 Unit Price incl. VAT
45
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT
46
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
47
Spring washer 6,4x11x0,5
006966
Not Available
48
Nut M8x6,5
020108
Not Available
49
Self locking nut M6
241936
£0,74 Unit Price incl. VAT
50
Hose clamp
307166
£1,27 Unit Price incl. VAT
51
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
52
Hose clamp
269273
£1,90 Unit Price incl. VAT
53
Fairlead
573052
£2,72 Unit Price incl. VAT
54
Brake pipe support bracket
599523
Not Available
55
Plate
136916
£3,37 Unit Price incl. VAT
56
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT
57
Screw w/ flange
436788
Not Available
58
Kit spring/blade
599321
Not Available
59
Clip-pin-spring kit
600207
Not Available
60
screw
030076
Not Available
61
Brake washer
598833
£3,05 Unit Price incl. VAT
62
Hex socket screw M6x16
709099
£0,14 Unit Price incl. VAT
