Parts Catalog
Saddle
6
Parts Diagram
Parts Catalog
Case helmet
by
Front and rear mudguard

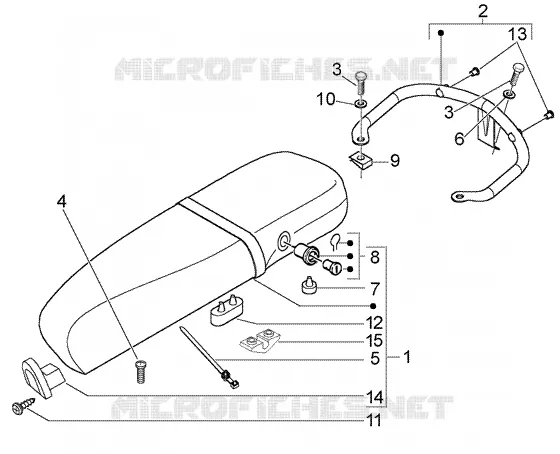

Saddle
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Saddle
CM02520100E9
Not Available
1
Saddle
CM02520100E8
Not Available
1
Saddle
CM02520100EA
Not Available
2
Handle
623562
Not Available
3
Hex screw M6x22
031091
Not Available
3
Hex socket screw M6x20
271147
Not Available
4
Metric screw M6x20
259830
Not Available
5
Hose clamp
298729
£1,24 Unit Price incl. VAT
6
Notched washer 6,6x11x0
012533
Not Available
7
Pad
577492
£4,28 Unit Price incl. VAT
8
Lock, assy
497457
£62,41 Unit Price incl. VAT
9
Spring plate M6
254485
£1,64 Unit Price incl. VAT
10
Washer
078307
Not Available
11
Hex socket screw M6x20
271147
Not Available
12
Stop buffer
296456
£2,54 Unit Price incl. VAT
13
Handle plug
623561
£5,33 Unit Price incl. VAT
14
Hook for bag
494634
£17,24 Unit Price incl. VAT
15
Bracket
296743
£4,38 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
