Parts Catalog
Oil pump-oil pan
6

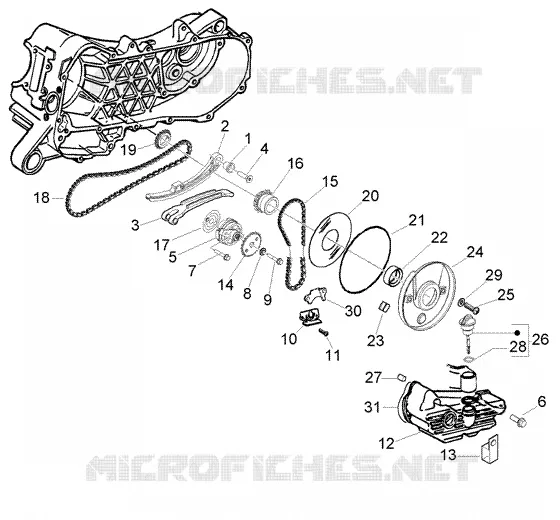

Parts Diagram
Parts Catalog
Driven pulley
by
Rear wheel shaft
Oil pump-oil pan
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
Chain tensioner rod spacer
485868
Not Available
2
Chain tensioner rod
840510
£6,31 Unit Price incl. VAT
3
Chain tensioner sliding block
828308
£4,94 Unit Price incl. VAT
4
Screw w/ flange M6x25
414837
Not Available
5
Oil pump assembly
844352
Not Available
6
Screw w/ flange M6x30
289731
Not Available
7
Screw w/ flange M5x35
829593
£1,27 Unit Price incl. VAT
8
Belleville spring Ø6,4xØ20x2
436695
£2,09 Unit Price incl. VAT
9
Screw w/ flange M6x14
833722
Not Available
10
Lower oil bulkhead
483767
£10,06 Unit Price incl. VAT
11
Screw w/ flange M5x16
830061
£2,48 Unit Price incl. VAT
12
Motor oil cup
843761
£70,16 Unit Price incl. VAT
13
Retainer clamp
487824
Not Available
14
Oil pump gear
287913
£8,52 Unit Price incl. VAT
15
Oil pump chain
82649R
£15,60 Unit Price incl. VAT
16
Oil pump control pinion
82783R
£22,50 Unit Price incl. VAT
17
Carter-oil pump gasket
486082
Not Available
18
Camshaft chain
82643R
£56,02 Unit Price incl. VAT
19
Timing chain pinion
82782R
£22,31 Unit Price incl. VAT
20
Oil seal washer
483918
£1,27 Unit Price incl. VAT
21
Gasket ring
825620
£8,42 Unit Price incl. VAT
22
Gasket ring
82538R
£15,91 Unit Price incl. VAT
23
Oil pump chain drift
434345
£7,32 Unit Price incl. VAT
24
Cover
828875
Not Available
25
Self-tapping screw M5x12
015585
Not Available
26
Oil filler plug
846819
Not Available
26
Oil plug assembly
843364
£5,90 Unit Price incl. VAT
27
Locating dowel Ø7,5x12
277916
£6,38 Unit Price incl. VAT
28
O-ring
479986
Not Available
29
Plain washer
487937
Not Available
30
Upper oil bulkhead
485047
£12,44 Unit Price incl. VAT
31
Sump gasket
830128
£6,46 Unit Price incl. VAT
