Parts Catalog

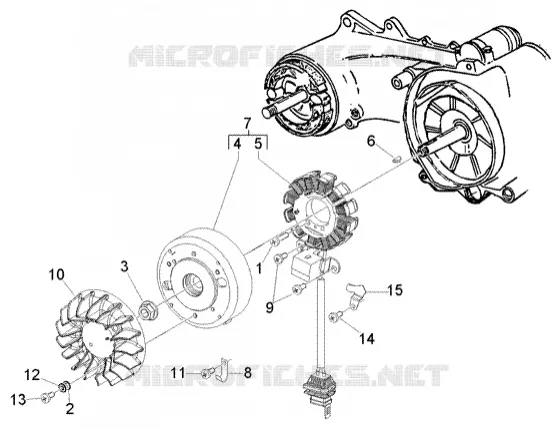

Flywheel magneto
6
Parts Diagram
Parts Catalog
Belt cooling tube
by
Secondary air box
Flywheel magneto
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Screw M5x22
828662
£1,33 Unit Price incl. VAT
2
Washer Ø5,3xØ10x0,5
006975
Not Available
3
Flanged nut M12
436783
Not Available
4
Complete rotor (Kokusan)
584695
£129,55 Unit Price incl. VAT
5
Complete stator (Kokusan)
584690
£86,81 Unit Price incl. VAT
6
Transmission key
000267
Not Available
7
Complete magneto flywheel
58059R
£213,92 Unit Price incl. VAT
8
Hose clamp
827542
Not Available
9
Screw M5x10
018575
Not Available
10
Fan
825430
£39,24 Unit Price incl. VAT
11
screw
259577
£0,97 Unit Price incl. VAT
12
Washer
827035
Not Available
13
screw M5x16
259151
£0,96 Unit Price incl. VAT
14
Screw M5x10
018575
Not Available
15
Plate
828766
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
