Parts Catalog
Carburettor
6

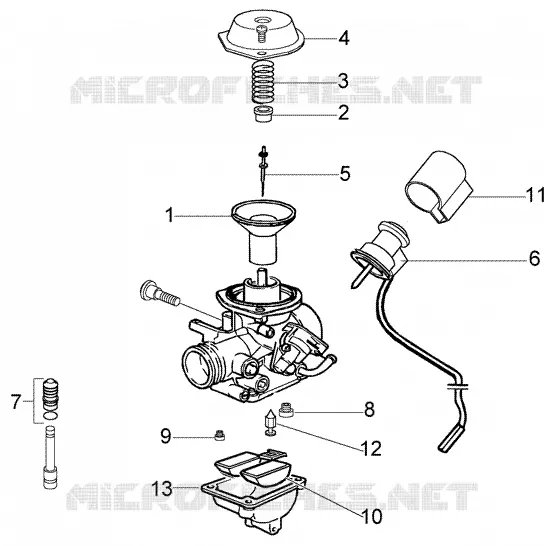

Parts Diagram
Parts Catalog
Carburettor
by
Air cleaner
Carburettor
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Diaphragm
CM140302
£135,32 Unit Price incl. VAT
2
Tapered pin cap
842517
Not Available
3
Gas valve spring
CM140903
£15,04 Unit Price incl. VAT
4
Gas valve cover
842514
£45,49 Unit Price incl. VAT
5
Conical pin
CM140205
£15,06 Unit Price incl. VAT
6
Automatic starter cpl.
CM142904
£163,67 Unit Price incl. VAT
7
Bellows kit
CM149501
Not Available
8
Main jet 82
CM129914
£17,77 Unit Price incl. VAT
9
Idle jet 35
CM140101
£13,68 Unit Price incl. VAT
10
Float kit
842522
£74,63 Unit Price incl. VAT
11
Cap
828844
£16,30 Unit Price incl. VAT
12
Fuel closing needle
CM147102
£16,48 Unit Price incl. VAT
13
Float chamber cpl.
CM140403
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
