1
Engine displacement
150
2
Model
LX
3
Year
0
4
Trim
LX 150
5
Parts Catalog

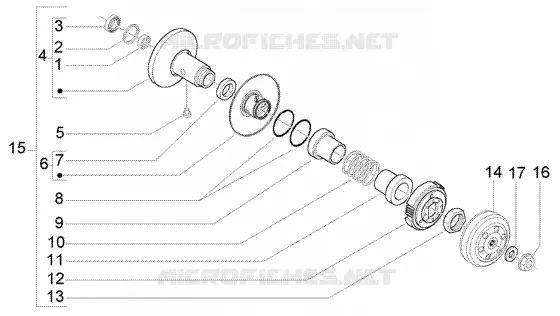

Driven pulley
6
Parts Diagram
Parts Catalog
Oil filter
by
Oil pump-oil pan
Driven pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Roller cage 20x29x18
82518R
£29,20 Unit Price incl. VAT
2
Snap ring
483226
£1,87 Unit Price incl. VAT
3
Bearing 17x30x7
82753R
£21,72 Unit Price incl. VAT
4
Fixed driven half pulley
830580
£97,84 Unit Price incl. VAT
5
Guide pin L=12,5
828717
£1,50 Unit Price incl. VAT
6
Adjustable pulley, half
827499
Not Available
7
Gasket ring
431089
£8,58 Unit Price incl. VAT
8
Gasket
430585
£0,88 Unit Price incl. VAT
9
Pulley side cap
4310935
£32,24 Unit Price incl. VAT
10
Variator spring
825726
Not Available
11
Clutch side cap
487936
£8,76 Unit Price incl. VAT
12
Complete centrifugal clutch assembly
CM1440025
Not Available
13
Ring nut
433232
£13,28 Unit Price incl. VAT
14
Clutch drum
844049
Not Available
15
Pulley
82743R
Not Available
16
Nut M12x1.25
486324
£1,04 Unit Price incl. VAT
17
Flat washer 22x12,1x1
274246
£1,00 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
