Parts Catalog
Crankase
6
Parts Diagram
Parts Catalog
Secondary air box
by
Brake lever

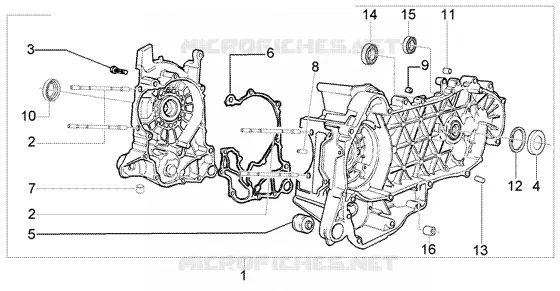

Crankase
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Crank-case
CM1468075001
Not Available
1
Crank-case
CM1468075002
Not Available
2
Stud bolt
411295
Not Available
3
screw M6x60
432142
Not Available
4
Gasket ring
82539R
Not Available
5
Silent-block
486081
£9,73 Unit Price incl. VAT
6
Half crankcase gasket
829526
£11,90 Unit Price incl. VAT
7
Plug M12x1,5
411311
Not Available
8
Nozzle
484034
£7,96 Unit Price incl. VAT
9
Pin 6,5x9,5x15
239388
Not Available
10
Gasket ring
82540R
Not Available
11
Cover
487115
£1,57 Unit Price incl. VAT
12
Circlip 25x26.9x1.2
000674
Not Available
13
Locating dowel Ø11x10
478115
Not Available
14
Radial ball bearing 15x42x13
485912
Not Available
15
Radial ball bearing 20x47x14
833701
Not Available
16
Bush Ø8xØ12x8
431860
£1,43 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
