1
Engine displacement
50
2
Model
LX
3
Year
2005
4
Trim
LX 2T
5
Parts Catalog

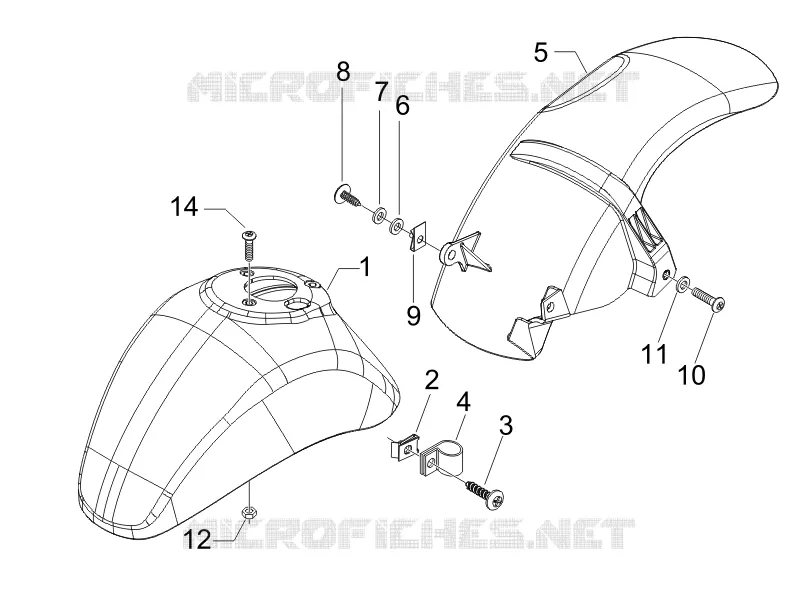

Wheel huosing - Mudguard
6
Parts Diagram
Parts Catalog
Secondary air box
by
Central cover - Footrests
Wheel huosing - Mudguard
1
2
3
4
5
6
7
8
9
10
11
12
14
1
Mudguard
60041540F3
Not Available
1
Front mudguard
6004154
Not Available
1
FF MUDGUARD
6004154018
Not Available
2
Spring plate
CM017410
£0,71 Unit Price incl. VAT
3
screw
015900
Not Available
4
Hose clamp
562919
£1,24 Unit Price incl. VAT
5
Rear mudguard
575079
Not Available
6
Notched washer 6,6x11x0
012533
Not Available
7
Flat washer 16x6,5x1,5
013880
Not Available
8
screw
015804
Not Available
9
Spring plate M6
254485
£1,64 Unit Price incl. VAT
10
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
11
Spring washer
709047
£0,70 Unit Price incl. VAT
12
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
14
Metric screw TBC
575249
£0,62 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
