1
Engine displacement
50
2
Model
LX
3
Year
2005
4
Trim
LX 2T
5
Parts Catalog
Crankshaft
6
Parts Diagram
Parts Catalog
Stater - Electric starter
by
Handlebars - Master cil.

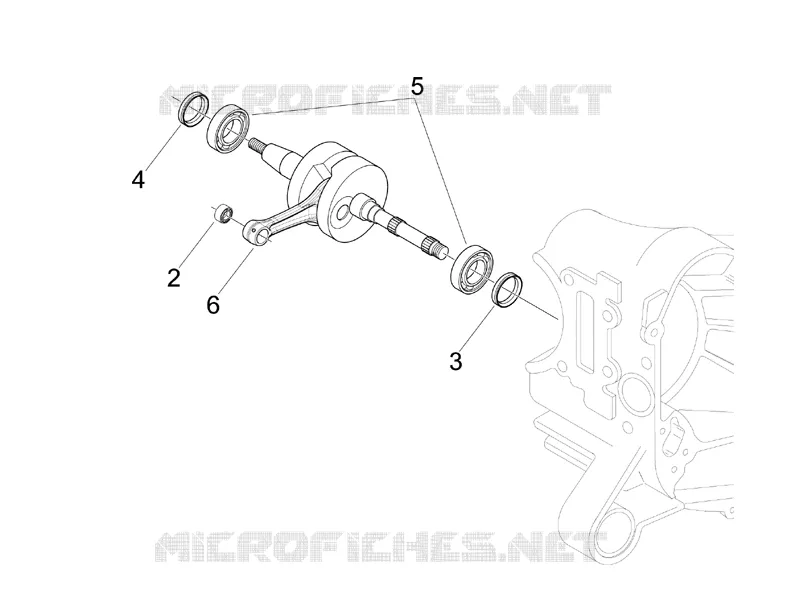

Crankshaft
2
3
4
5
6
2
Pin cage 3 cat.
500503
£8,12 Unit Price incl. VAT
2
Pin cage 2 cat.
500502
£8,12 Unit Price incl. VAT
2
Pin cage 1 cat.
500501
£8,04 Unit Price incl. VAT
2
Pin cage 4 cat.
500504
£8,12 Unit Price incl. VAT
3
Gear side seal ring
482314
£9,00 Unit Price incl. VAT
4
Flywheel side seal ring
482315
£9,36 Unit Price incl. VAT
5
Bearing 20x52x12
431125
£20,40 Unit Price incl. VAT
6
Drive shaft
431625
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
