1
Engine displacement
50
2
Model
LX
3
Year
2005
4
Trim
LX 2T
5
Parts Catalog

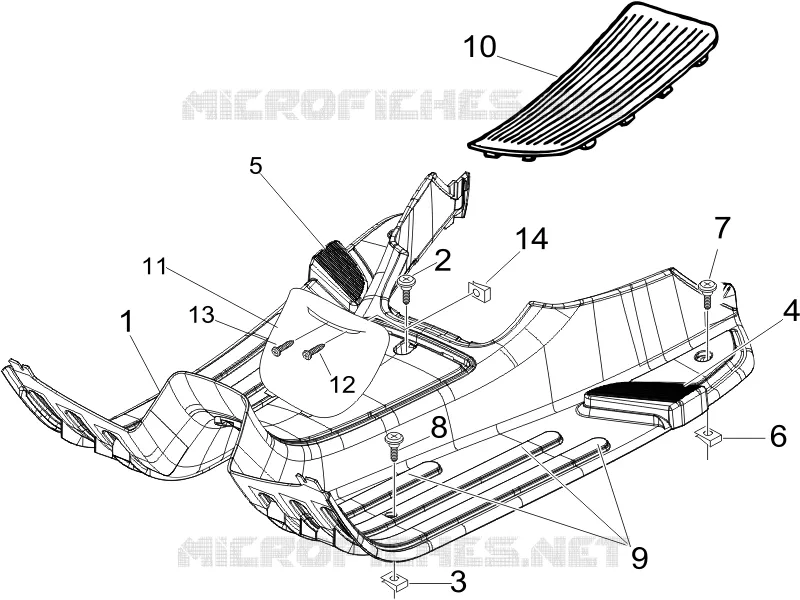

Central cover - Footrests
6
Parts Diagram
Parts Catalog
Wheel huosing - Mudguard
by
Stand/s
Central cover - Footrests
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Footrest
62212440F3
Not Available
1
Footrest
6221244018
£183,86 Unit Price incl. VAT
2
Self-tap screw
576189
Not Available
3
Plate
CM017406
£0,95 Unit Price incl. VAT
4
LH footrest
622125
£12,46 Unit Price incl. VAT
5
RH footpad
622126
£12,46 Unit Price incl. VAT
6
Spring plate M6
254485
£1,64 Unit Price incl. VAT
7
Screw m6x30
271891
£1,28 Unit Price incl. VAT
8
Self tapping screw
297498
£0,60 Unit Price incl. VAT
9
Kit strips, footboard
622139
Not Available
10
Mat
298243
Not Available
11
Spark plug insp. door
622136
Not Available
11
Spark plug insp. door
6221360018
Not Available
11
Flap
62213650F3
Not Available
12
Self tapping screw 4,2x16
015911
Not Available
13
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
14
Plate
CM017408
£0,30 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
