Parts Catalog
Stater - Electric starter
6
Parts Diagram
Parts Catalog
Carburetor's components
by
Crankshaft

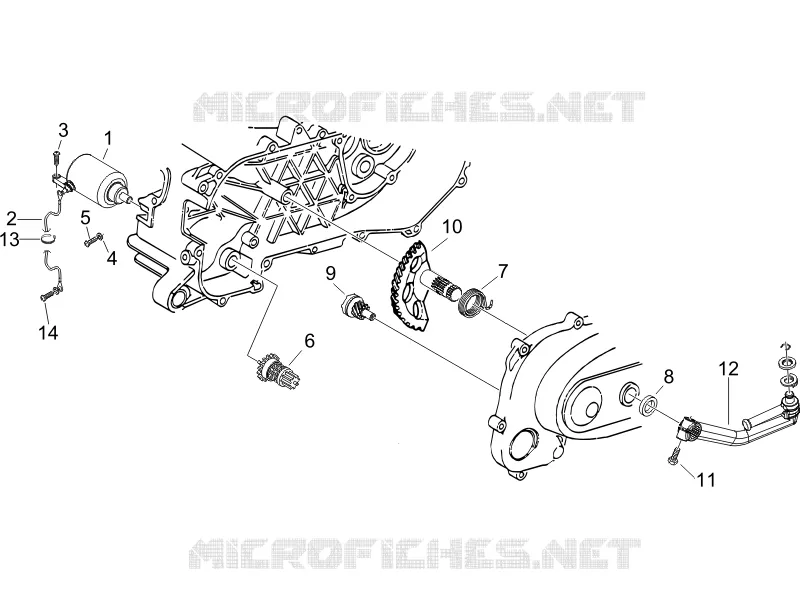

Stater - Electric starter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Starter motor
82530R
£107,58 Unit Price incl. VAT
2
Relay-starter motor cable
639220
Not Available
3
Hex screw M6x22
031091
Not Available
4
Flat washer 4,2x7,6x0,9
016404
Not Available
5
screw
018644
Not Available
6
Starter motor gear
82531R
Not Available
7
Starter lever return spring
289495
£8,69 Unit Price incl. VAT
8
Washer 16,3x23,8
433987
£0,60 Unit Price incl. VAT
9
Pinion starter
483537
£28,58 Unit Price incl. VAT
10
Starting shaft
831458
£30,05 Unit Price incl. VAT
11
Screw w/ flange M6x25
414837
Not Available
12
Starter lever
969421
Not Available
13
Hose clamp
269273
£1,90 Unit Price incl. VAT
14
screw M6x35
414838
£1,27 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
