1
Engine displacement
50
2
Model
LX
3
Year
2005
4
Trim
LX 2T
5
Parts Catalog

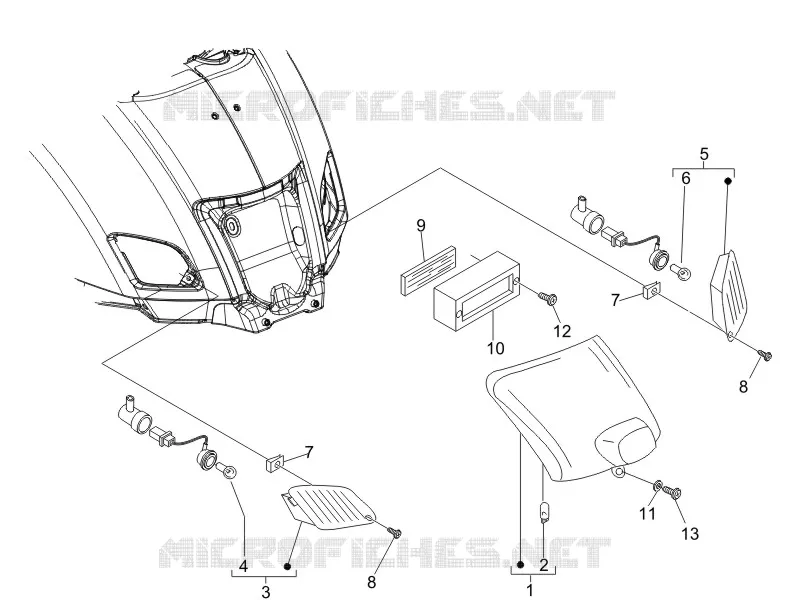

Rear headlamps - Turn signal lamps
6
Parts Diagram
Parts Catalog
Flywheel magneto
by
Rear cover - Splash guard
Rear headlamps - Turn signal lamps
1
2
3
4
5
6
7
7
8
8
9
10
11
12
13
1
Taillight
638646
Not Available
2
Lamp 12V-21/5W
129953
£3,48 Unit Price incl. VAT
3
Turn signal lamp
639285
Not Available
4
Lamp 12V-10W
584332
£3,77 Unit Price incl. VAT
5
Turn signal lamp
639286
Not Available
6
Lamp 12V-10W
584332
£3,77 Unit Price incl. VAT
7
Spring plate
CM017405
£0,72 Unit Price incl. VAT
8
Screw d3,5x13
008372
Not Available
9
License plate light glass
639335
£6,86 Unit Price incl. VAT
10
License plate light small cover
63881040F3
Not Available
10
COVER NUMBER LIGHT
6388104018
Not Available
11
Screw M4x12
015996
Not Available
11
Washer
013769
Not Available
12
Self tapping screw 3.5x16
294678
£1,27 Unit Price incl. VAT
13
Screw M4x12
015996
Not Available
13
Washer
013769
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
