1
Engine displacement
50
2
Model
LX
3
Year
2005
4
Trim
LX 2T
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Rear brake - Brake jaw
by
Flywheel magneto cover - Oil filter
Fork/steering tube - Steering bearing unit
1
2
3
4
5
7
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
51
52
53
54
55
56
57
58
62
63
68
69
70
1
Steering tube ring nut
011109
Not Available
2
Upper thrust ring
56297R
Not Available
2
Upper thrust ring
CM061303
Not Available
3
Cap
177609
£3,76 Unit Price incl. VAT
4
Nut
021114
Not Available
5
Split pin
012789
Not Available
7
Lower steering bearing
CM061304
Not Available
7
Lower steering bearing
56298R
Not Available
23
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
24
Spring plate M6
254485
£1,64 Unit Price incl. VAT
25
Washer of the steering
003751
Not Available
26
Circlip
006422
Not Available
27
Washer Ø5,3xØ10x0,5
006975
Not Available
28
screw M5x16
031058
Not Available
29
O-ring
177408
£1,33 Unit Price incl. VAT
30
Washer
177414
£1,62 Unit Price incl. VAT
31
Washer
177445
£1,62 Unit Price incl. VAT
32
Ring
177521
£1,62 Unit Price incl. VAT
33
Pad
266841
£1,86 Unit Price incl. VAT
34
Pinion
267819
£3,60 Unit Price incl. VAT
35
Plate
269118
Not Available
36
Bracket
273693
£16,19 Unit Price incl. VAT
37
Maintenance
564053
Not Available
38
Not available
560286
Not Available
39
Drawn cap
177436
Not Available
40
Ring
177494
£4,73 Unit Price incl. VAT
41
Snap ring
006635
Not Available
42
Spring washer 6,4x11x0,5
006966
Not Available
43
Roller cage
177442
£7,33 Unit Price incl. VAT
44
Gasket ring
177443
£3,55 Unit Price incl. VAT
45
Bearing
177610
£20,51 Unit Price incl. VAT
46
Hex socket screw M6x20
271147
Not Available
47
Brake disc
56395R
£61,37 Unit Price incl. VAT
47
Brake disc
563246
Not Available
48
Front wheel hub
560284
Not Available
51
Steering column tube
5998115
Not Available
51
Steering column tube
6011825
Not Available
52
Gasket
006731
Not Available
53
Gasket ring
119219
£1,58 Unit Price incl. VAT
54
Piston pin
177451
£22,88 Unit Price incl. VAT
55
Roller cage
198513
£15,49 Unit Price incl. VAT
56
Suspension arm
56140R
Not Available
57
Front shock absorber
56266R
Not Available
58
Cover
092517
Not Available
62
Front suspension arm cover
561433
Not Available
63
Front suspension cover
6004164018
Not Available
63
Tyre
60041640F3
Not Available
68
Spring washer 13,75x8,15x4,5
016408
Not Available
69
Nut M8x6,5
020108
Not Available
70
screw
031120
Not Available

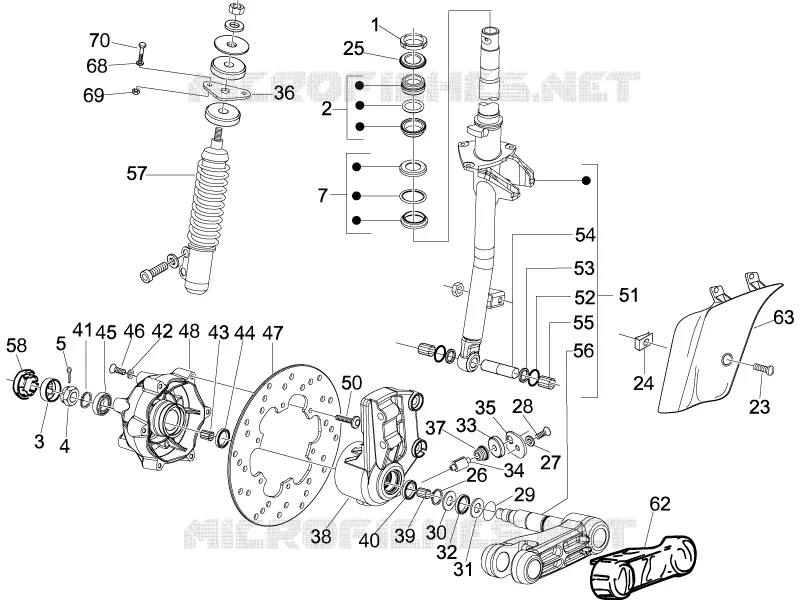

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
