Engine displacement
300
2
Model
MP3
3
Year
2016
4
Trim
MP3 ie E4 LT BUSINESS - SPORT ABS
5
Parts Catalog
Frame/bodywork
6
Parts Diagram
Parts Catalog
Crankcase cover - Crankcase cooling
by
Reduction unit
Frame/bodywork
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
Not available
1B0038495
Not Available
2
Front sub-chassis with U.P.
2B0007715
Not Available
3
Hex screw M8x22
031119
Not Available
4
Notched washer 14x8,3x1,8
012540
Not Available
5
Flat washer 8,4x18x2
003038
Not Available
6
Screw m6x12
031086
Not Available
7
Notched washer 6,6x11x0
012533
Not Available
8
Flat washer 6,4x12x1
003056
Not Available
9
Front sub-chassis strut
6227795
£108,52 Unit Price incl. VAT
10
Hex screw M8x22
031119
Not Available
11
Notched washer 14x8,3x1,8
012540
Not Available
12
Flat washer 8,4x18x2
003038
Not Available
13
Pipes connection cross pin
6234865
£125,28 Unit Price incl. VAT
14
Hex screw M8x30
031122
Not Available
15
Notched washer 14x8,3x1,8
012540
Not Available
16
Flat washer 8,4x18x2
003038
Not Available
17
Right footrest support cross pin
CM2614015
Not Available
18
Left footrest support cross pin
CM2614025
£21,98 Unit Price incl. VAT
19
screw M6x16
031088
Not Available
20
Spring washer 6,4x11,8x1
016406
Not Available
21
Flat washer 16x6,5x1,5
013880
Not Available
22
Small carrier connector front pipe
653294
£28,45 Unit Price incl. VAT
23
Flat washer 8,4x18x2
003038
Not Available
24
Notched washer 14x8,3x1,8
012540
Not Available
25
Screw m8x18 zn
031117
Not Available

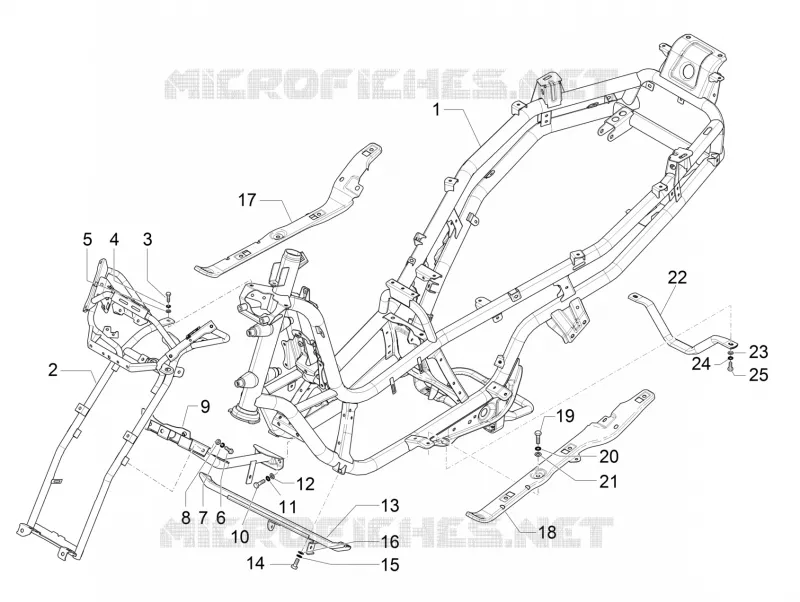

Find the detailed Frame/bodywork GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
