Engine displacement
300
2
Model
MP3
3
Year
2016
4
Trim
MP3 ie E4 LT BUSINESS - SPORT ABS
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Wheel huosing - Mudguard
by
Front shield
Cooling system
1
2
3
4
5
5
5
6
7
8
9
10
11
12
13
14
14
15
16
17
17
17
18
19
20
21
22
23
24
25
25
25
26
26
27
28
1
Water cooler
1B001908
£277,73 Unit Price incl. VAT
2
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
3
Spring plate M6
254485
£1,64 Unit Price incl. VAT
4
Lower rubber
258904
£1,54 Unit Price incl. VAT
5
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT
6
Hose clamp
CM001915
£1,99 Unit Price incl. VAT
7
Electric fan assy.
58211R
£211,80 Unit Price incl. VAT
8
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
9
Spring plate M6
254485
£1,64 Unit Price incl. VAT
10
Radiator-head pipe fitting link
1B001825
£60,40 Unit Price incl. VAT
11
Pump-radiator pipe fitting
1B001532
£75,96 Unit Price incl. VAT
12
Hose clamp
CM001908
£2,06 Unit Price incl. VAT
13
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
14
Hose clamp
CM001907
£1,67 Unit Price incl. VAT
15
Manifold-union breather pipe
622581
£17,24 Unit Price incl. VAT
16
Cooler-expansion tank pipe
622582
£16,78 Unit Price incl. VAT
17
Hose clamp
CM001903
£1,87 Unit Price incl. VAT
18
Hose clamp
CM001904
£1,51 Unit Price incl. VAT
19
Coolant tank
653463
Not Available
20
Expansion tank plug
623673
£17,92 Unit Price incl. VAT
21
Self-tap screw
CM178604
£1,24 Unit Price incl. VAT
22
Spring plate
CM017410
£0,71 Unit Price incl. VAT
23
Lower rubber
258904
£1,54 Unit Price incl. VAT
24
Non return spring
CM006902
£1,55 Unit Price incl. VAT
25
Pipes/cables retainer spring
CM006903
£3,58 Unit Price incl. VAT
26
Non return spring
CM017808
£2,44 Unit Price incl. VAT
27
clamp mount with internal parts.
1B001745
£7,70 Unit Price incl. VAT
28
Screw w/ flange M6x10
969296
£1,27 Unit Price incl. VAT

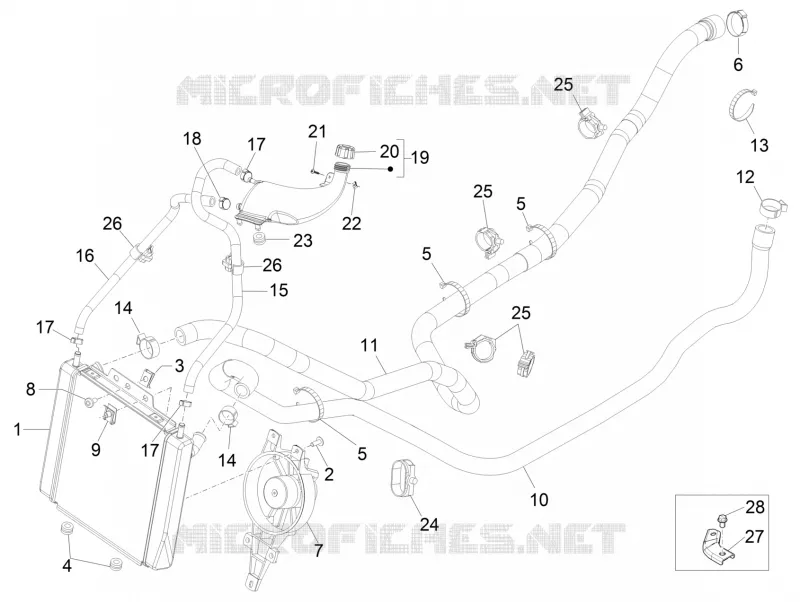

Find the detailed Cooling system GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
