1
Engine displacement
300
2
Model
MP3
3
Year
2016
4
Trim
MP3 ie E4 LT BUSINESS - SPORT ABS
5
Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Meter combination - Cruscotto
by
Rear suspension - Shock absorber/s
Rear wheel
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
1
Rear wheel 3.75 x 14"
1C002668
£186,58 Unit Price incl. VAT
1
Rear wheel 3.75 x 14"
1C002673
£210,11 Unit Price incl. VAT
2
(Michelin) Rear tyre 140/60-14"
666284
Not Available
3
Brake disc
56498R
£67,42 Unit Price incl. VAT
4
Phonic wheel
2B000624
£26,22 Unit Price incl. VAT
5
Hex socket screw M6x20
667152
£1,27 Unit Price incl. VAT
6
Tubeless valve
597679
£6,16 Unit Price incl. VAT
7
Split pin
012789
Not Available
8
Nut hold cap
194423
Not Available
9
Nut M16x13
563728
£2,48 Unit Price incl. VAT
10
Spacer
597528
£7,33 Unit Price incl. VAT
11
Wheel spacer
848039
£25,44 Unit Price incl. VAT
12
ABS rear sensor
B000526
Not Available
13
Torx convex big end screw M5x16
B0167965
£0,89 Unit Price incl. VAT
14
Flat washer
669282
£2,36 Unit Price incl. VAT
15
Sensor bracket ABS
1C002567
Not Available
15
Sensor bracket ABS
1C001004
£35,72 Unit Price incl. VAT

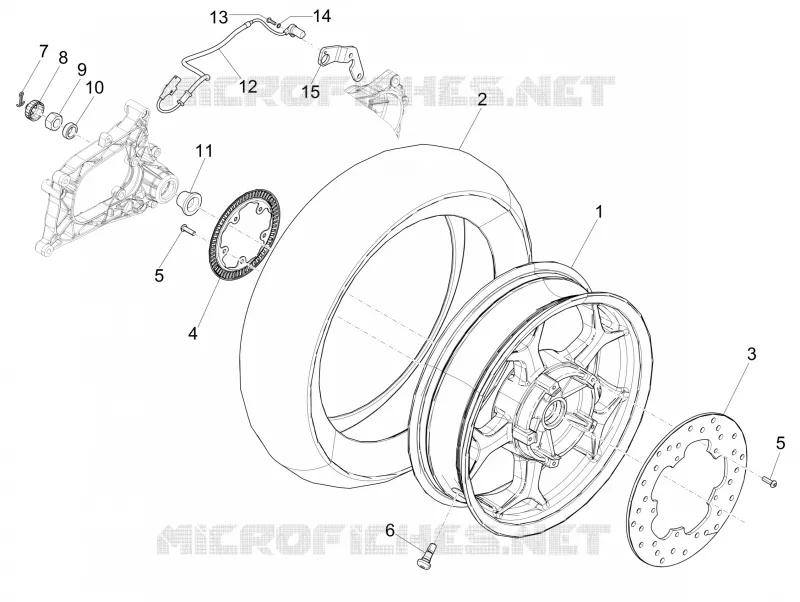

Find the detailed Rear wheel GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
