Parts Catalog
Rear suspension - Shock absorber/s
6
Parts Diagram
Parts Catalog
Rear wheel
by
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
Rear suspension - Shock absorber/s
1
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
17
18
19
20
20
21
22
23
24
24
25
25
26
1
Complete rear shock absorber
1C001152R
£40,46 Unit Price incl. VAT
2
Engine suspension right bracket
650095
£346,08 Unit Price incl. VAT
3
Circlip
006647
Not Available
4
Ball bearing
82545R
£22,90 Unit Price incl. VAT
5
Stop ring
829377
£19,39 Unit Price incl. VAT
6
Nut M8
020008
Not Available
7
Shock absorber support bracket with U.P.
1C001030
£45,19 Unit Price incl. VAT
8
Shock absorber connection bracket
1C001031
£16,16 Unit Price incl. VAT
9
Spring washer
709047
£0,70 Unit Price incl. VAT
10
screw
598921
£1,06 Unit Price incl. VAT
11
Hex socket screw M8x50
844483
£0,65 Unit Price incl. VAT
12
Plain washer 10,4x18x2
016626
Not Available
13
Self locking nut M10
002440
Not Available
14
Shock absorber support bracket with U.P.
1C001015
£43,92 Unit Price incl. VAT
15
Rear shock absorber fixing bracket
651003
£15,64 Unit Price incl. VAT
16
Plain washer 10,4x18x2
016626
Not Available
17
Self locking nut M10
002440
Not Available
18
Flat washer
1C001145
£2,36 Unit Price incl. VAT
19
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
20
Spring washer
709047
£0,70 Unit Price incl. VAT
21
Low self-locking nut
709052
£1,13 Unit Price incl. VAT
22
Hex socket screw
826298
£1,20 Unit Price incl. VAT
23
Low self-locking nut
709052
£1,13 Unit Price incl. VAT
24
Flat washer
178790
£1,64 Unit Price incl. VAT
25
Screw w/ flange
598838
£2,17 Unit Price incl. VAT
26
Flat washer
1C001249
£2,05 Unit Price incl. VAT

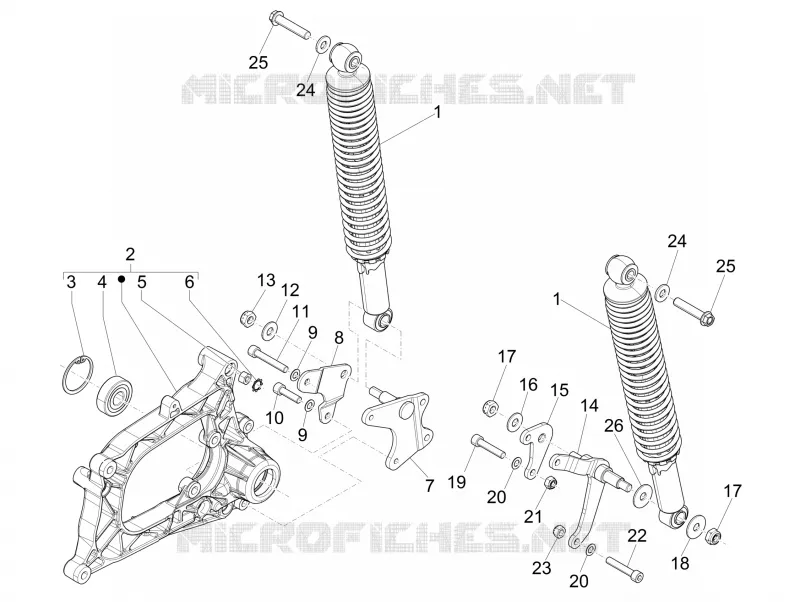

Find the detailed Rear suspension - Shock absorber/s GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
