1
Engine displacement
300
2
Model
MP3
3
Year
2016
4
Trim
MP3 ie E4 LT BUSINESS - SPORT ABS
5
Parts Catalog
Crankcase cover - Crankcase cooling
6
Parts Diagram
Parts Catalog
Rear headlamps - Turn signal lamps
by
Frame/bodywork
Crankcase cover - Crankcase cooling
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
1
Transmission cover with U.P.
8768835
£209,58 Unit Price incl. VAT
2
Snap ring
006635
Not Available
3
Radial bearing 15x35x11
4789853
£5,38 Unit Price incl. VAT
4
Pin d.9,5 h=15
B015956
£0,74 Unit Price incl. VAT
5
Cooling Cover
876075
Not Available
6
screw M6x25
018553
Not Available
7
Filtering element
875701
£5,32 Unit Price incl. VAT
8
Screw w/ flange M6x30
B016792
£1,27 Unit Price incl. VAT
9
Hose clamp
844964
£1,99 Unit Price incl. VAT
10
Soundproof cover with U.P.
1A007472
Not Available
11
Spring plate
181351
£0,98 Unit Price incl. VAT
12
Screw w/ flange M6x50
B016775
£1,27 Unit Price incl. VAT
13
Spacer
431577
£3,55 Unit Price incl. VAT
14
Spacer
876413
£4,02 Unit Price incl. VAT
15
Transmission cover
CM159905
£12,46 Unit Price incl. VAT
16
Washer 6.4x13x1.5
013777
Not Available
17
Pad
431578
£1,33 Unit Price incl. VAT

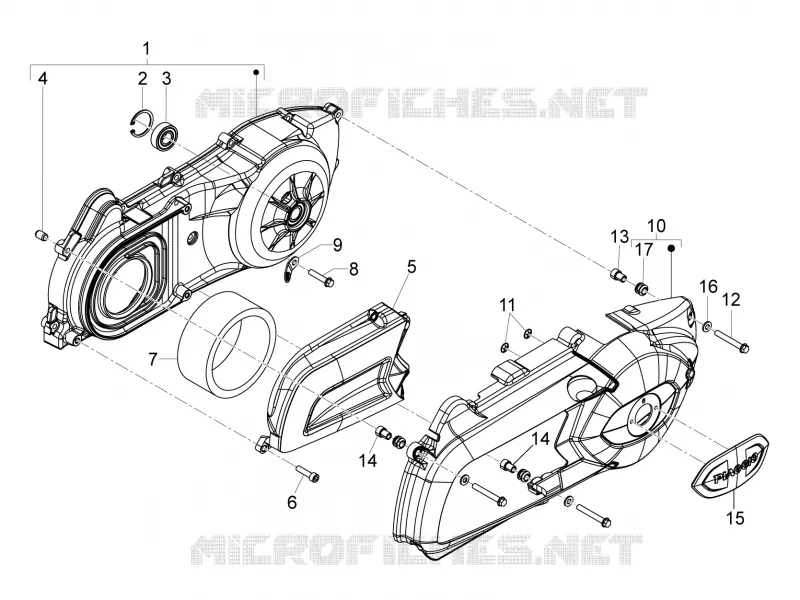

Find the detailed Crankcase cover - Crankcase cooling GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
