1
ABS control unit
1C001261
Not Available
2
ABS control unit support
2B000650
£22,31 Unit Price incl. VAT
3
Cylindrical cable grommet
576565
£0,89 Unit Price incl. VAT
4
Washer d6,2x20x1
013092
Not Available
5
Screw w/ flange M6x25
414837
Not Available
6
Spring plate M6
254485
£1,64 Unit Price incl. VAT
7
Bush d.10-h.3,5
AP9100053
£1,76 Unit Price incl. VAT
8
Hex socket screw
840541
£0,95 Unit Price incl. VAT
9
LH clamp brake pipe - ABS
1C001089R
Not Available
10
ABS front valve brake pipe
1C001491R
Not Available
11
ABS - rear valve brake pipe
2B001195R
£139,22 Unit Price incl. VAT
12
Rear brake pipe - ABS unit
1C001050
£93,89 Unit Price incl. VAT
13
RH clamp brake pipe - ABS
1C001097R
Not Available
14
Support clamp
2B001132
£8,15 Unit Price incl. VAT
15
Spring plate M6
254485
£1,64 Unit Price incl. VAT
16
Hose clamp
649378
£11,94 Unit Price incl. VAT
17
Screw w/ flange M6x16
B016777
£1,27 Unit Price incl. VAT
18
Screw w/ flange M6x30
B016792
£1,27 Unit Price incl. VAT
19
Cover
498431
£25,02 Unit Price incl. VAT
20
Brake oil tank
274598
£66,44 Unit Price incl. VAT
21
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
22
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT
23
Spring
179013
£5,17 Unit Price incl. VAT
24
ABS pipe rear support
1B001658
£7,34 Unit Price incl. VAT
25
Screw w/ flange M5x9
AP8152339
£1,94 Unit Price incl. VAT
26
Spring plate M5
248419
£2,00 Unit Price incl. VAT
27
Pipe support
2B000665
£7,67 Unit Price incl. VAT
28
Complete brake pump D.16
648798
£94,87 Unit Price incl. VAT
29
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
30
Gasket
127927
£1,04 Unit Price incl. VAT
31
BREAK PIPES
601781
Not Available
32
Oil switch
640295
£193,75 Unit Price incl. VAT
33
BREAK PIPES
1C001100R
Not Available
34
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
35
Special stud bolt M6
2B000952
£7,09 Unit Price incl. VAT
36
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
37
Gasket
127927
£1,04 Unit Price incl. VAT
38
Washer 6,2x18x2
013950
Not Available
39
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
40
Hose clamp
601970
£4,70 Unit Price incl. VAT
41
Screw w/ flange M6x10
969296
£1,27 Unit Price incl. VAT
42
Joint
597033
£27,38 Unit Price incl. VAT
43
Bleed screw
651461
£12,96 Unit Price incl. VAT
44
Cap
651462
£7,04 Unit Price incl. VAT
45
Hex screw M6x20
018639
Not Available
46
Anti-tilting oil-pump tank joint pipe
649563
£21,06 Unit Price incl. VAT
47
Hose clamp
CM001901
£1,76 Unit Price incl. VAT
48
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
49
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
50
Spring plate
CM017409
£1,27 Unit Price incl. VAT
51
Hose clamp
CM001913
£1,69 Unit Price incl. VAT
52
BREAK PIPES
650718
£41,05 Unit Price incl. VAT
53
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
54
Gasket
127927
£1,04 Unit Price incl. VAT
55
Spacer
273288
£1,87 Unit Price incl. VAT
56
Black hose 178x4
AP8120416
£1,00 Unit Price incl. VAT
57
Cable-guide
AP8221150
£2,48 Unit Price incl. VAT

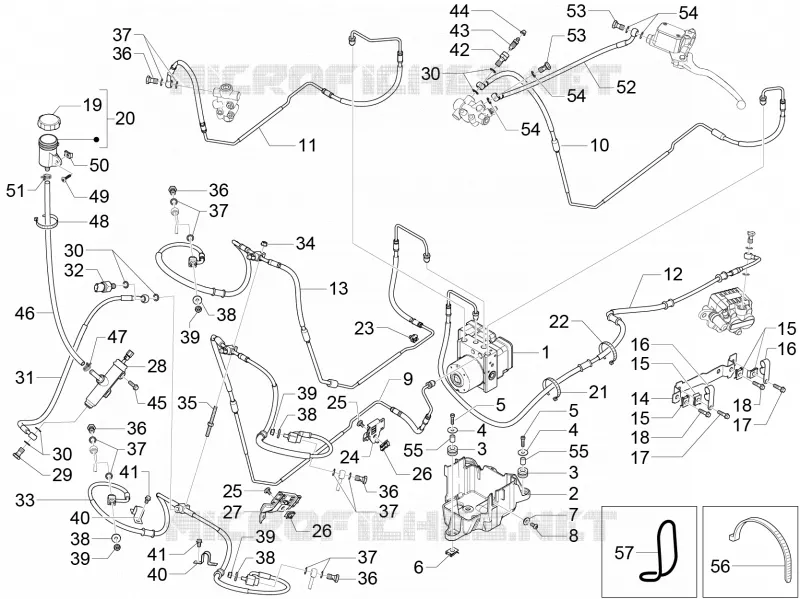

Find the detailed ABS Brake system GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
