Engine displacement
300
2
Model
MP3
3
Year
2016
4
Trim
MP3 ie E4 LT BUSINESS - SPORT ABS
5
Parts Catalog
Swinging arm
6
Parts Diagram
Parts Catalog
by
Driving pulley
Swinging arm
1
2
2
3
3
3
4
5
5
6
6
7
8
9
10
11
11
11
12
13
14
15
16
17
18
19
19
20
1
Complete swinging arm on frame side
1C001010
£67,79 Unit Price incl. VAT
2
Bush
597317
£1,84 Unit Price incl. VAT
3
Roller cage
56127R
£9,07 Unit Price incl. VAT
4
Complete swinging arm on engine side
1C001011
£132,18 Unit Price incl. VAT
5
Bush
597317
£1,84 Unit Price incl. VAT
6
Roller cage
56127R
£9,07 Unit Price incl. VAT
7
Hex screw M10x225
667827
£11,90 Unit Price incl. VAT
8
Spacer L=235.5
CM067809
£13,98 Unit Price incl. VAT
9
Threaded bush
597774
£30,86 Unit Price incl. VAT
10
Nut m22x2 h=8
564611
£4,70 Unit Price incl. VAT
11
Self locking nut M10
002440
Not Available
12
Hex screw
667441
£13,12 Unit Price incl. VAT
13
Spacer L=198
CM067807
£14,09 Unit Price incl. VAT
14
screw
597081
£13,28 Unit Price incl. VAT
15
Flat washer
178790
£1,64 Unit Price incl. VAT
16
Hex socket screw
597893
£1,24 Unit Price incl. VAT
17
Self locking nut M10
002440
Not Available
18
Complete silent block support bracket
1C001007
Not Available
19
Silent-block
599250
£15,38 Unit Price incl. VAT
20
Circlip
006416
Not Available

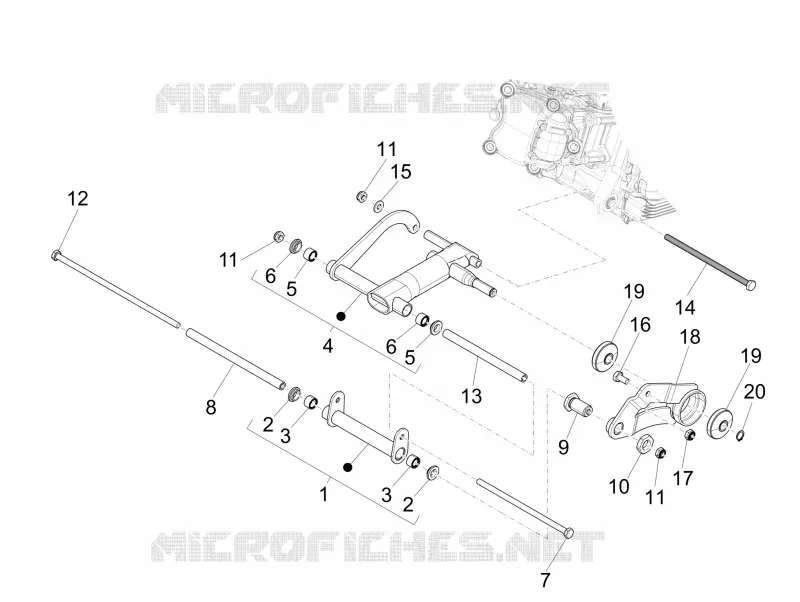

Find the detailed Swinging arm GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
