1
Engine displacement
300
2
Model
GTV
3
Year
2023
4
Trim
Vespa GTV 300 HPE E5 ABS RST
5
Parts Catalog
Air filter
6

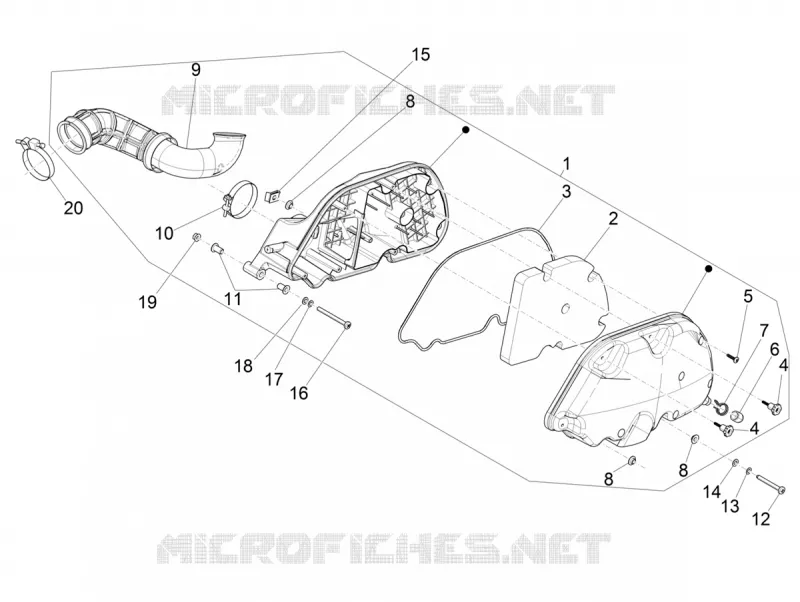

Parts Diagram
Parts Catalog
EXHAUST
by
Cylinder head cover
Air filter
1
2
3
4
4
5
6
7
8
8
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Boîte filtre
1A011905
£240,43 Unit Price incl. VAT
2
Filtre air PREMIUM
8319970P
£10,25 Unit Price incl. VAT
3
Packing
831995
£16,56 Unit Price incl. VAT
4
Air filter closing knob
479132
£11,59 Unit Price incl. VAT
5
Self-tap screw M3x20
258146
£0,65 Unit Price incl. VAT
6
Cap
827831
£4,75 Unit Price incl. VAT
7
Hose clamp
CM002910
£0,98 Unit Price incl. VAT
8
Knurled bushing
830056
£1,27 Unit Price incl. VAT
9
Manchon de filtre à air/boîtier papillon
1A011902
£57,70 Unit Price incl. VAT
10
Hose clamp
260918
£4,78 Unit Price incl. VAT
11
Bushing
830057
£3,78 Unit Price incl. VAT
12
Special cap screw M6x55
1B000678
£0,38 Unit Price incl. VAT
13
Notched washer 6,6x11x0
012533
Not Available
14
Flat washer 6,4x12x1
003056
Not Available
15
Spring plate M6
254485
£1,64 Unit Price incl. VAT
16
Special cap screw M6x55
1B000678
£0,38 Unit Price incl. VAT
17
Notched washer 6,6x11x0
012533
Not Available
18
Flat washer 6,4x12x1
003056
Not Available
19
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
20
Hose clamp
260918
£4,78 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
